FTSH-135-01-L-DV-TR

FTSH-135-01-L-DV-TR

数据手册.pdf
Samtec(申泰电子) 连接器与适配器

SAMTEC FTSH-135-01-L-DV-TR Board-To-Board Connector, 1.27mm, 70Contacts, Header, FTSH Series, Surface Mount, 2Rows

The FTSH series from are surface mount micro terminal strip headers. It mates with Samtec FFSD, FFTP, CLP and FLE series of connectors. These terminal strip headers are available in end shroud, end shroud with locking clip, end shroud with guide post, end shroud with board lock and ejector shroud option.

.
Pitch spacing is 1.27mm 2 to 50 contacts per row with double row vertical mounting -DV
.
Operating temperature range of -55°C to 125°C
.
Contact material is phosphor bronze
.
Black liquid crystal polymer insulator material
.
10µ" gold plated contacts
.
Complies with UL E111594 and CSA 090871_0_000 standards
FTSH-135-01-L-DV-TR中文资料参数规格
技术参数

触点数 70

极性 Male

触点电镀 Gold

额定电流 1.75 A

排数 2

封装参数

安装方式 Surface Mount

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

FTSH-135-01-L-DV-TR引脚图与封装图

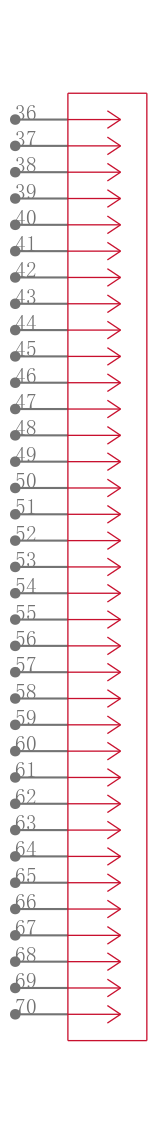

FTSH-135-01-L-DV-TR引脚图

FTSH-135-01-L-DV-TR引脚图

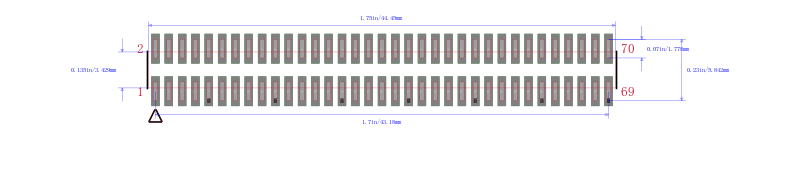

FTSH-135-01-L-DV-TR封装图

FTSH-135-01-L-DV-TR封装图

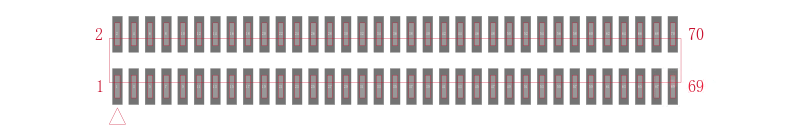

FTSH-135-01-L-DV-TR封装焊盘图

FTSH-135-01-L-DV-TR封装焊盘图

在线购买FTSH-135-01-L-DV-TR
型号 制造商 描述 购买
FTSH-135-01-L-DV-TR Samtec 申泰电子 SAMTEC FTSH-135-01-L-DV-TR Board-To-Board Connector, 1.27mm, 70Contacts, Header, FTSH Series, Surface Mount, 2Rows 搜索库存
