FTS-103-01-F-D

SAMTEC FTS-103-01-F-D Board-To-Board Connector, 1.27mm, 6Contacts, Header, FTS Series, Through Hole, 2Rows

The FTS series from are micro low profile terminal strip headers. It mates with Samtec FFSD, CLP and FLE series of connectors. These terminal strip headers are available in various post heights.

.

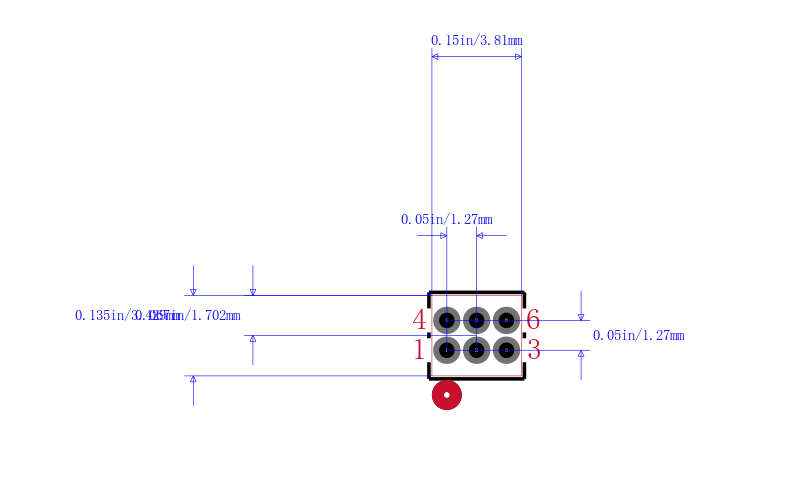

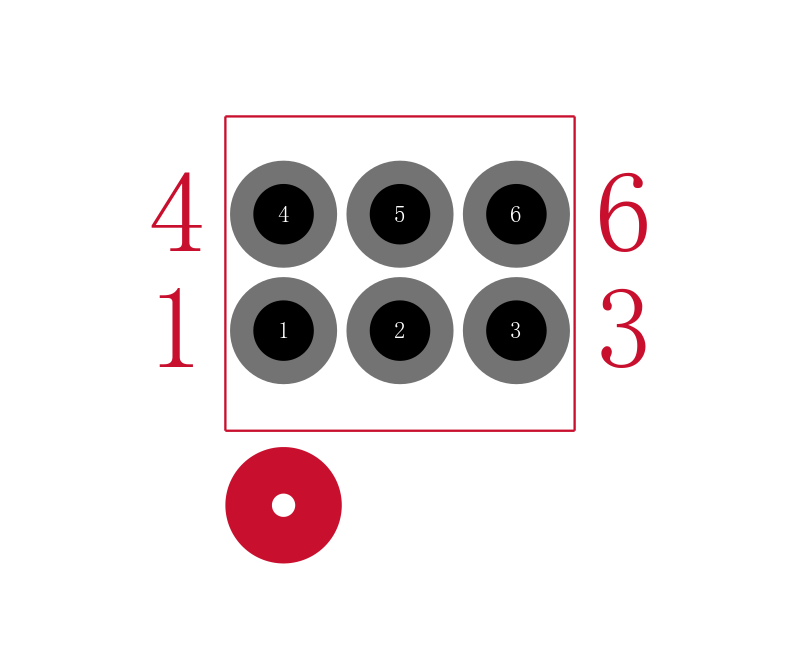

Pitch spacing is 1.27mm 2 to 50 contacts per row with double row through hole mounting -D

.

High operating temperature range of -55°C to 125°C

.

Contact material is phosphor bronze

.

Black liquid crystal polymer insulator material

.

Current rating is 3.3A

.

Complies with UL E111594 standard

.

Gold flash plated contacts
