FTSH-135-01-L-DV

FTSH-135-01-L-DV

数据手册.pdf

Surface Mount Micro Headers - FTSH SeriesFTSH series SMT micro headers with a 1.27 mm pitch and gold plated contacts. This range of FTSH Series 1.27 mm pitch SMT micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.Current rating 1.75 A at 80 °C Operating temperature -55 to 125 °C ### 注**FTSH Series SMT Terminal Strips mate with:** FFSD Series IDC cable assemblies, see stock number 159-880 typical. CLP Series micro socket strips, see stock number 481-4695 typical. FLE Series socket strips, see stock number 766-8959 typical.### 1.27mm 板到板和线对板 Samtec

Surface Mount Micro Headers - FTSH Series

FTSH series SMT micro headers with a 1.27 mm pitch and gold plated contacts. This range of FTSH Series 1.27 mm pitch SMT micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.

Current rating 1.75 A at 80 °C

Operating temperature -55 to 125 °C

### 注

**FTSH Series SMT Terminal Strips mate with:**

FFSD Series IDC cable assemblies, see stock number 159-880 typical.

CLP Series micro socket strips, see stock number 481-4695 typical.

FLE Series socket strips, see stock number 766-8959 typical.

FTSH-135-01-L-DV中文资料参数规格
技术参数

触点数 70

极性 Male

触点电镀 Gold

额定电流 1.75 A

排数 2

针脚数 70

封装参数

安装方式 Surface Mount

封装 -

引脚间距 1.27 mm

外形尺寸

长度 44.5 mm

高度 2.51 mm

封装 -

引脚间距 1.27 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 Industrial, -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

FTSH-135-01-L-DV引脚图与封装图

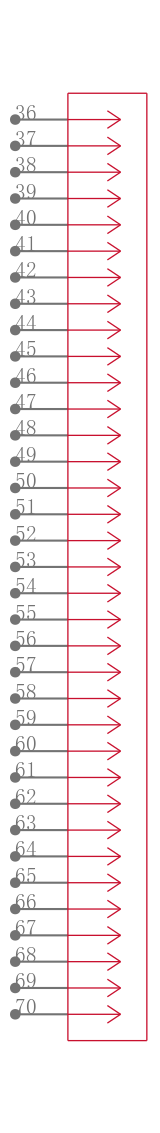

FTSH-135-01-L-DV引脚图

FTSH-135-01-L-DV引脚图

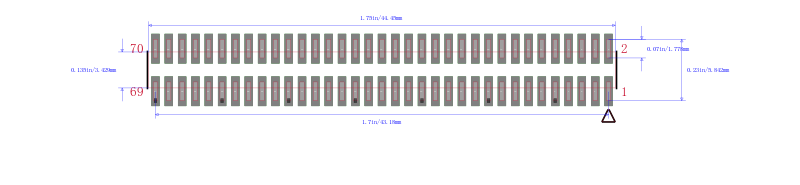

FTSH-135-01-L-DV封装图

FTSH-135-01-L-DV封装图

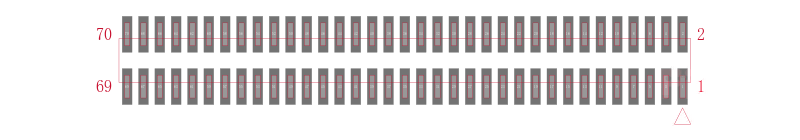

FTSH-135-01-L-DV封装焊盘图
