FAN7318MX

LCD背光逆变器驱动IC LCD Backlight Inverter Drive IC

Description

The FAN7318 is a LCD backlight inverter drive IC that controls P-N half-bridge topology.

The FAN7318 provides a low-cost solution and reduces external components by integrating proprietary wave rectifiers for open-lamp protection and regulation. The operating voltage range of the FAN7318 is wide, so an external regulator isn’t necessary to supply the voltage to the IC.

Features

High-Efficiency Single-Stage Power Conversion

Wide Input Voltage Range: 6V to 30V

Backlight Lamp Ballast and Soft Dimming

Minimal External Components Required

Precision Voltage Reference Trimmed to 2%

Half-Bridge Topology

Soft-Start

PWM Control at Fixed Frequency

Analog Dimming Function

Burst Dimming Function

Programmable Striking Frequency

Open-Lamp Protection

Open-Lamp Regulation

Short-Lamp Protection

CMP-High Protection

FB-High Protection

Thermal Shutdown

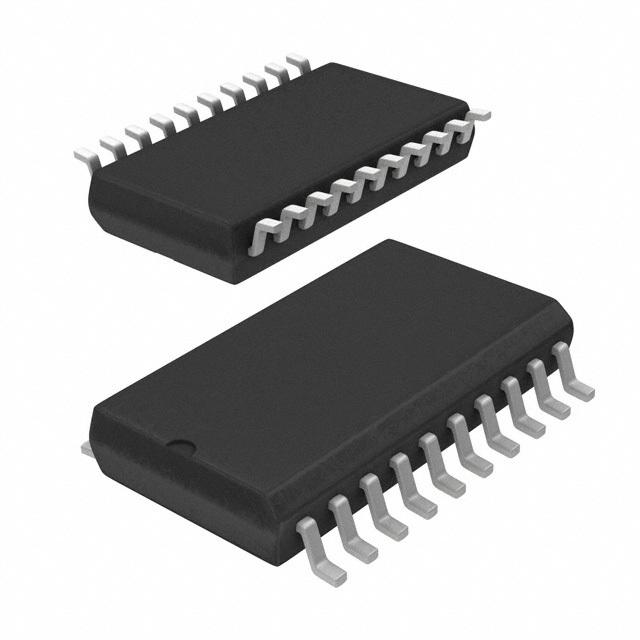

20-Pin SOIC

Applications

LCD TV

LCD Monitor
