FQI8N60CTU
数据手册.pdf
Fairchild
飞兆/仙童
分立器件

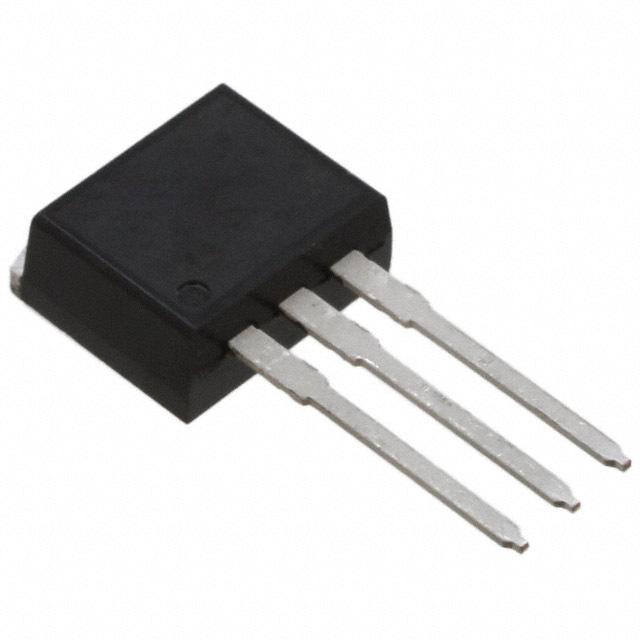

Trans MOSFET N-CH 600V 7.5A 3Pin3+Tab I2PAK Rail
General Description
These N-Channel enhancement mode power field effect transistors are produced using ’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.
Features
• 7.5A, 600V, RDSon= 1.2Ω@VGS= 10 V
• Low gate charge typical 28 nC
• Low Crss typical 12 pF
• Fast switching
• 100% avalanche tested
• Improved dv/dt capability
