ELXZ630ELL681MM20S

Cap Aluminum Lytic 680uF 63V 20% 18 X 20mm Radial 7.5mm 2290mA 8000H 105℃ Automotive Bulk

铝电解器 径向，Can - 105°C 时为 8000 小时

艾睿:

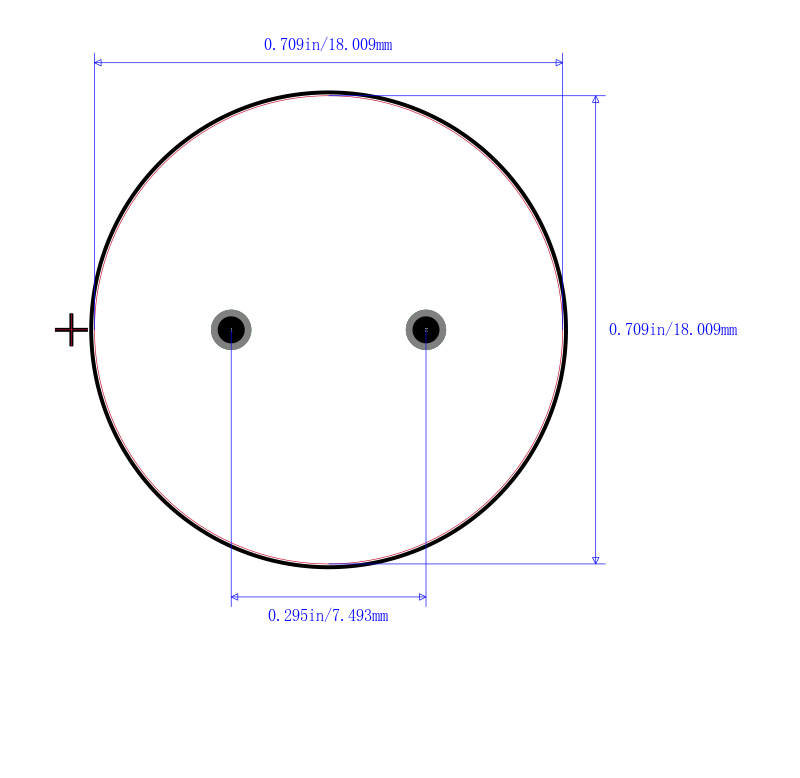

This electrolytic ELXZ630ELL681MM20S aluminum capacitor from United Chemi-con has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The ELXZ630ELL681MM20S aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 680uF. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 18 mm. Its leakage current is 3@2Min μA.

Verical:
Cap Aluminum Lytic 680uF 63V 20% 18 X 20mm Radial 7.5mm 2290mA 8000h 105C Automotive Bulk

MASTER:
Cap Aluminum Lytic 680uF 63V 20% 18 X 20mm Radial 7.5mm 2290mA 8000h 105°C Automotive Bulk

Online Components:
Cap Aluminum Lytic 680uF 63V 20% 18 X 20mm Radial 7.5mm 2290mA 8000h 105°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 680uF 63V 20% 18 X 20mm Radial 7.5mm 2290mA 8000h 105°C Automotive Bulk
