EK4152-02

HIGH-LINEARITY MOSFET QUAD MIXER

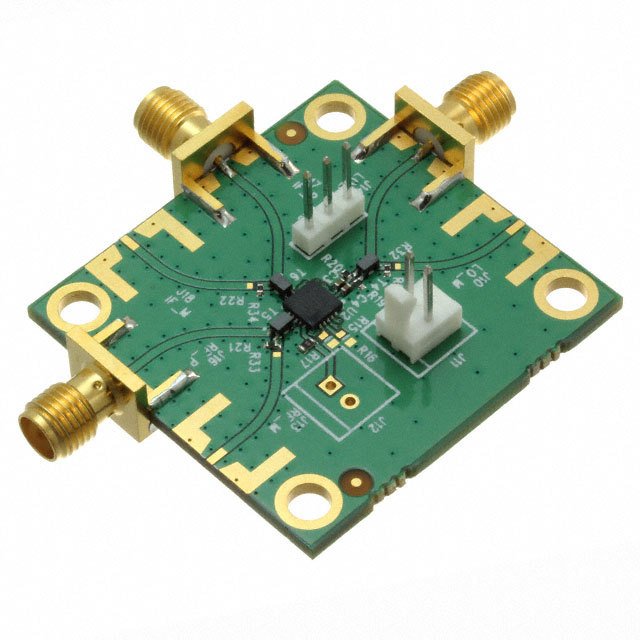

The is an Evaluation Kit for PE4152. The PE4152 is a high linearity quad metal-oxide-semiconductor field-effect transistor MOSFET mixer with an integrated local oscillator LO amplifier. The LO amplifier allows for LO input drive levels of less than 0 dBm to produce third-order intercept point IIP3 values similar to a quad MOSFET array driven with a 15 dBm LO drive. The PE4152 operates with differential signals at the radio frequency RF and intermediate frequency IF ports and the integrated LO buffer amplifier drives the mixer core. It can be used as an upconverter or a downconverter. The PE4152 also offers an integrated LO amplifier bypass option providing additional flexibility for low power or increased linearity operation. The bypassed LO amplifier allows superior LO to RF and LO to IF isolation levels relative to the enabled mode.
