EEUEE2W470

PANASONIC ELECTRONIC COMPONENTS  EEUEE2W470  铝电解电容, EE系列, 47 µF, ± 20%, 450 V, 16 mm, 径向引线

EE 系列

EE 系列 A 型电解器的耐受性可达 8000 至 10000 小时（取决于盒体尺寸）。 与 Panasonic ED 系列相比，这些径向电容器可在高频率下提供高出 40% 的波纹电流。

高波纹电流

极佳的耐受性

低阻抗

欧时:
Panasonic 铝电解电容器 EE RADIAL 系列 450V dc 47μF 通孔 EEUEE2W470, ±20%容差, 最高+105°C

立创商城:
47uF 450V

艾睿:

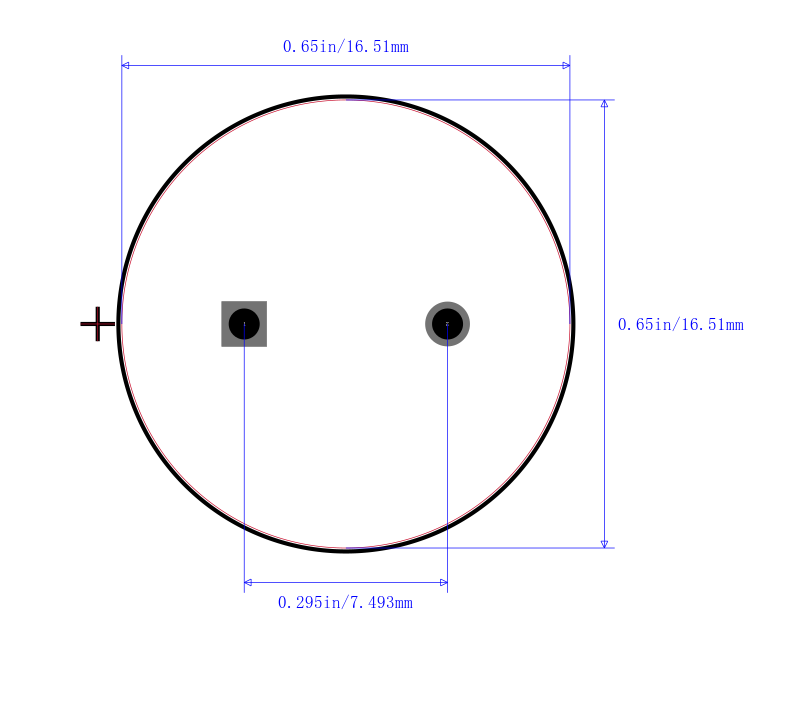

Thanks to Panasonic, you&s;ll never miss low-end frequencies with their electrolytic EEU-EE2W470 aluminum capacitor. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 47uF. It has a tolerance of 20%. Its leakage current is 136.9@2Min μA. The EEU-EE2W470 aluminum electrolytic capacitor has a radial termination style. This product is 31.5 mm tall with a diameter of 16 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Capacitor Radial EE 47uF 450V Hi-Ripple

安富利:
Cap Aluminum 47uF 450V 20% 16 X 31.5mm Radial 7.5mm 1200mA 10000 hr 105°C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUEE2W470  Aluminium Electrolytic Capacitor, EE Series, 47 - F, - 20%, 450 V, 16 mm, Radial Leaded
