ERJ12SF1001U
数据手册.pdf
Panasonic
松下
被动器件
PANASONIC ELECTRONIC COMPONENTS ERJ12SF1001U 片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 1 kohm, 200 V, 2010 [5025公制], 750 mW, ± 1%
The from Electronic Components is an ERJ12 series automotive grade, precision thick film chip resistor with 1Kohm E24, E96 decade resistance value. This ERJ12SF1001U resistor has high reliability metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
- .

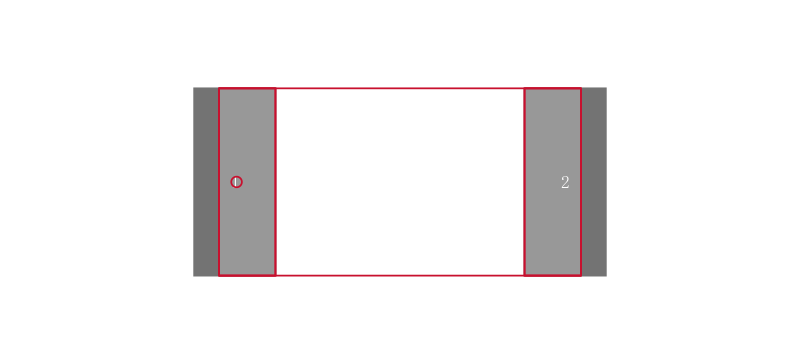

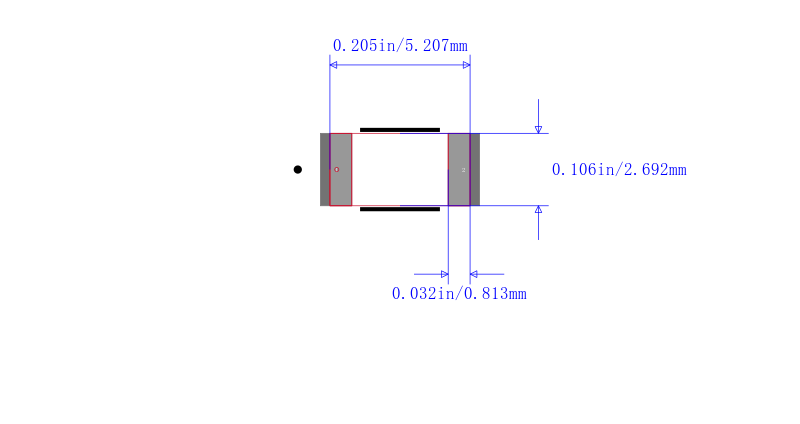

- EIA 2010 [5025 metric] case size
- .
- Resistance tolerance is ±1%
- .
- Limiting element voltage is 200Vand power rating is 750mW
- .
- Temperature coefficient is ±100ppm/°C
- .
- Small size, low weight resistors
- .
- Meets IEC 60115-8, JIS C 5201-8, JEITA RC-2144 standards
- .
- Suitable for both reflow and flow soldering
- .
- Operating temperature range of -55°C to 155°C
- .
- Automotive grade AEC-Q200 compliant
