ERJ-3GEYJ475V

ERJ-3GEYJ475V

数据手册.pdf
Panasonic(松下) 被动器件

Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/℃ to 150ppm/℃ Molded SMD SMD Punched Carrier T/R

Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R


得捷:
RES SMD 4.7M OHM 5% 1/10W 0603


艾睿:
This is a ERJ-3GEYJ475V fixed single surface-mount resistor from Panasonic. This dependable part has a power rating of 0.1 1/10 W. This product has a resistance value of 4.7M Ohm. Its temperature coefficient is -400 to 150 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.


Chip1Stop:
Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/C to 150ppm/C Molded SMD Automotive Punched T/R


Verical:
Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/C to 150ppm/C Molded SMD Automotive T/R


Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ-3GEYJ475V  SMD Chip Resistor, Thick Film, 4.7 Mohm, 75 V, 0603 [1608 Metric], 100 mW, ± 5%, ERJ3G Series


MASTER:
Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R


Online Components:
Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R


ERJ-3GEYJ475V中文资料参数规格
技术参数

额定电压DC 75.0 V

容差 ±5 %

额定功率 0.1 W

电阻 4.7 MΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 75 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 150ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8533210030

ERJ-3GEYJ475V引脚图与封装图
ERJ-3GEYJ475V引脚图

ERJ-3GEYJ475V引脚图

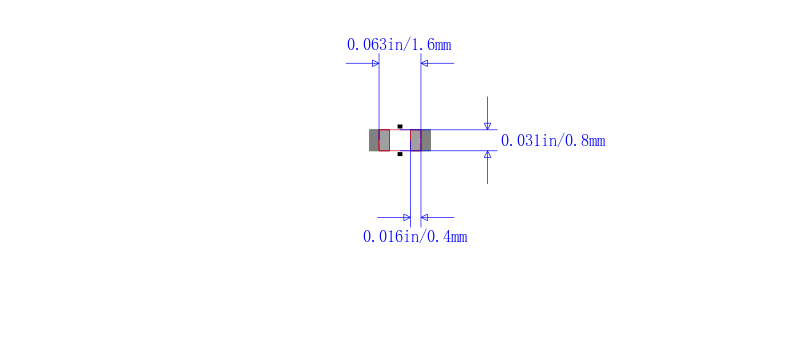

ERJ-3GEYJ475V封装图

ERJ-3GEYJ475V封装图

ERJ-3GEYJ475V封装焊盘图

ERJ-3GEYJ475V封装焊盘图

在线购买ERJ-3GEYJ475V
型号 制造商 描述 购买
ERJ-3GEYJ475V Panasonic 松下 Res Thick Film 0603 4.7M Ohm 5% 0.1W1/10W -400ppm/℃ to 150ppm/℃ Molded SMD SMD Punched Carrier T/R 搜索库存
