ECW-H12153JV

PANASONIC ELECTRONIC COMPONENTS  ECW-H12153JV  聚丙烯膜电容, 0.015uF, 5%, 1250VDC, 径向引线

0.015 µF 薄膜器 354V 1250V（1.25kV） 聚丙烯（PP），金属化 径向

立创商城:
15nF ±5% 1.25kV

e络盟:
PANASONIC ELECTRONIC COMPONENTS  ECW-H12153JV  聚丙烯膜电容, 0.015uF, 5%, 1250VDC, 径向引线

艾睿:

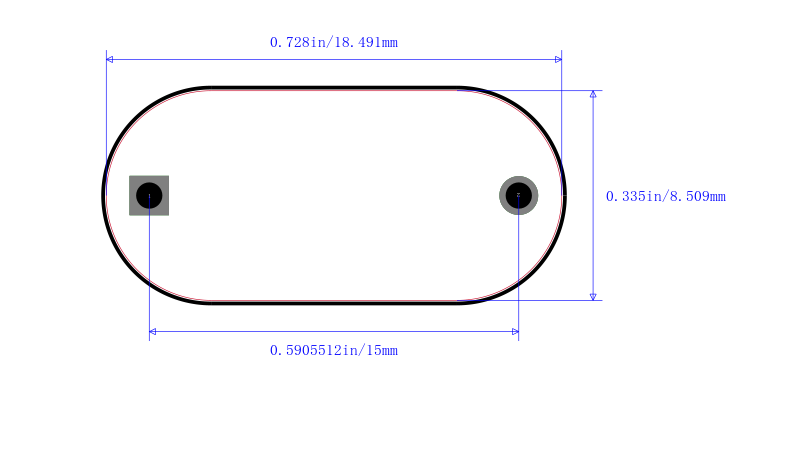

This ECW-H12153JV film capacitor from Panasonic is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 1250 VDC. This part has a maximum operating temperature of 105 °C. This product is 18Max mm long, 16Max mm tall and 9.5Max mm deep. Its capacitance value is 0.015uF. This part has a lead diameter of 0.8 mm and a pitch of 15 mm. The ECW-H12153JV part has a radial termination style. It has a tolerance of 5%.

Verical:
Cap Film 0.015uF 1250V PP 5% 18 X 9.5 X 16mm Radial 15mm 105C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ECW-H12153JV  Film Capacitor, 0.015 µF, PP Polypropylene, 1250 V, ECWHV Series, ± 5%, Radial Leaded

MASTER:
Cap Film 0.015uF 1250V PP 5% 18 X 9.5 X 16mm Radial 15mm 105°C Bulk

Online Components:
Cap Film 0.015uF 1250V PP 5% 18 X 9.5 X 16mm Radial 15mm 105°C Bulk

Electro Sonic:
Cap Film 0.015uF 1250V PP 5% 18 X 9.5 X 16mm Radial 15mm 105°C Bulk
