EKMG350ELL471MJ16S

470uF 35V 袋装

470 µF 35 V 铝电解器 径向，Can 105°C 时为 1000 小时

艾睿:

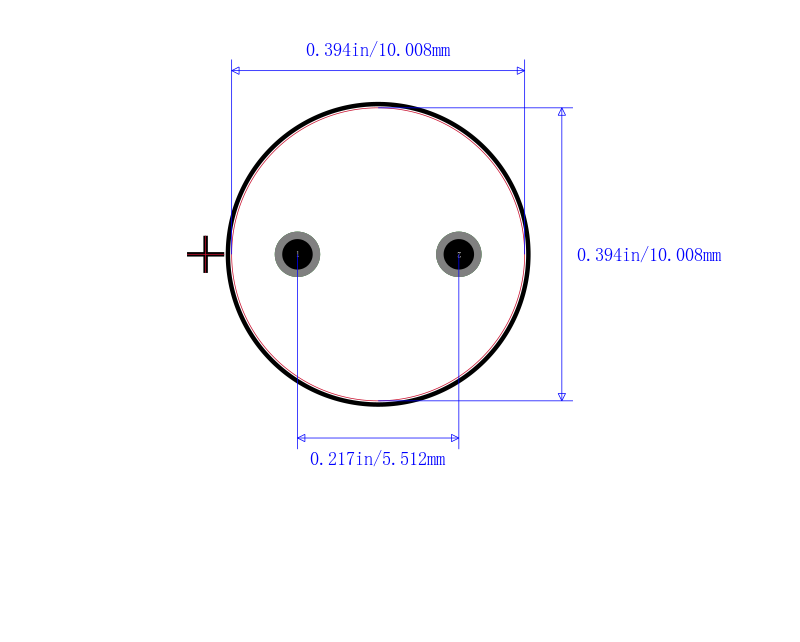

Manufactured from United Chemi-con, this electrolytic EKMG350ELL471MJ16S aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 493.5@1Min μA. Its capacitance value is 470uF. The EKMG350ELL471MJ16S aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 16 mm tall with a diameter of 10 mm. It has a tolerance of 20%.

Chip1Stop:
Cap Aluminum Lytic 470uF 35V 20% 10 X 16mm Radial 5mm 460mA 1000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 470uF 35V 20% 10 X 16mm Radial 5mm 460mA 1000h 105C Bulk

MASTER:
Cap Aluminum Lytic 470uF 35V 20% 10 X 16mm Radial 5mm 460mA 1000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 470uF 35V 20% 10 X 16mm Radial 5mm 460mA 1000h 105°C Bulk
