EL2386CS-T7

250MHz的三重电流反馈放大器具有禁用 250MHz Triple Current Feedback Amplifier with Disable

250MHz Triple Current Feedback Amplifier with Disable

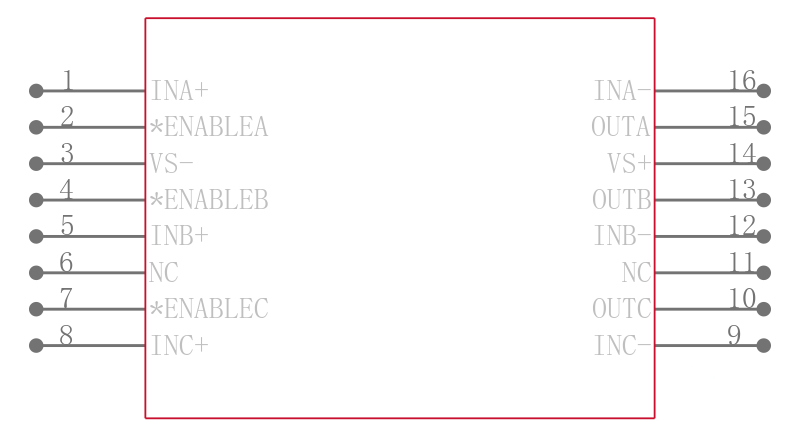

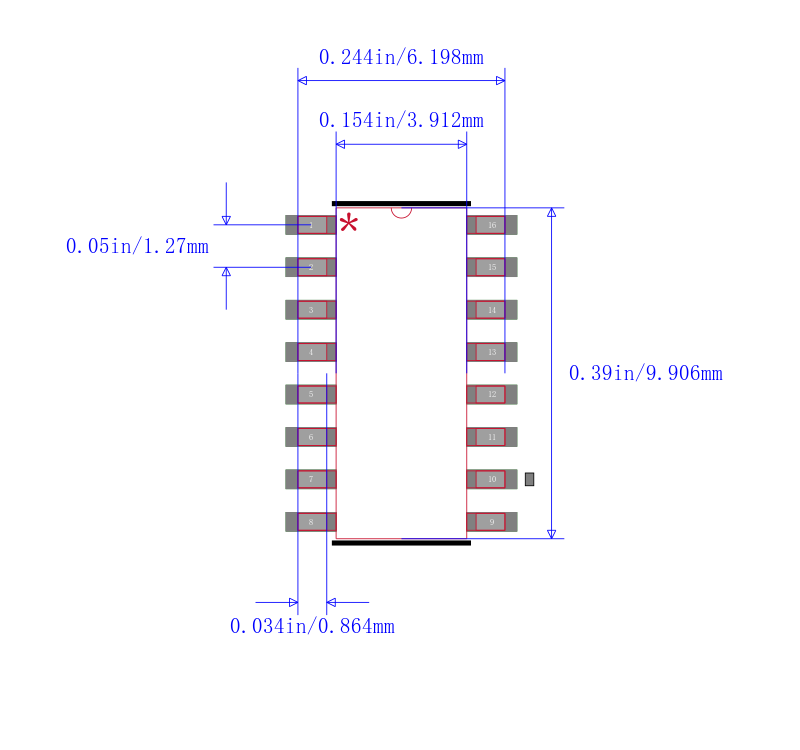

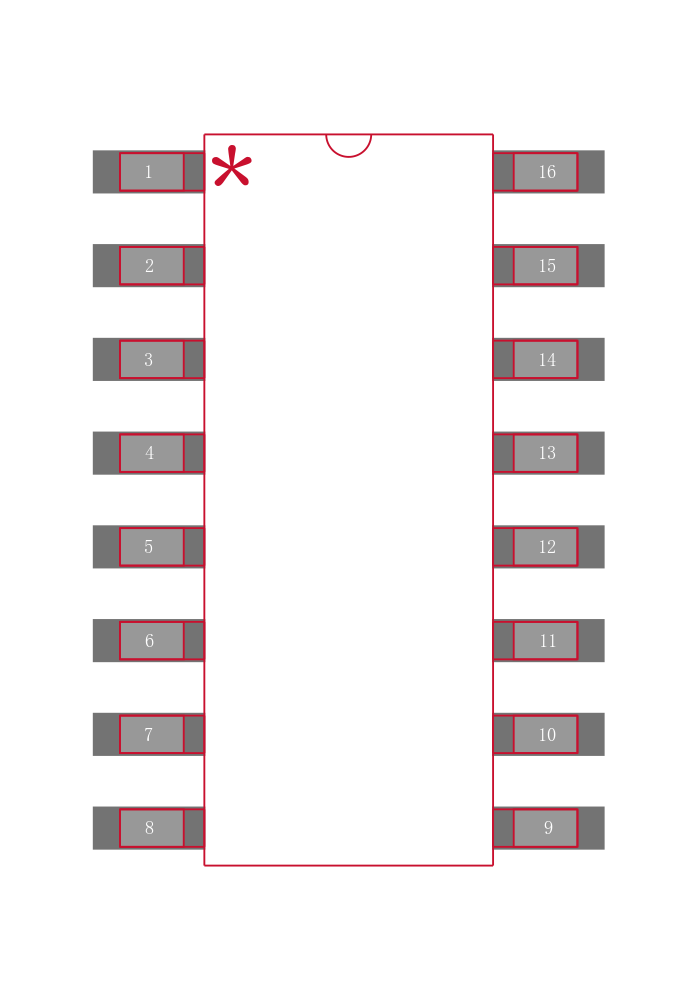

The EL2386 is a triple current feedback operational amplifier which achieves a -3dB bandwidth of 250MHz

at a gain of +1 while consuming only 3mA of supply current per amplifier. It will operate with dual supplies ranging from ±1.5V to ±6V, or from single supplies ranging from +3V to +12V. The EL2386 also includes a disable/power-down feature which reduces currentconsumption to 0mA while placing the amplifier output ina high impedance state. In spite of its low supply current, the EL2386 can output 55mA while swinging to ±4V on ±5V supplies. These attributes make the EL2386 an excellent choice for low power and/or low voltage cable-driver, HDSL, or RGB applications.

Features

• Triple amplifier topology

• 3mA supply current per amplifier

• 250MHz -3dB bandwidth

•Low cost

• Fast disable

• Powers down to 0mA

• Single- and dual-supply operation down to ±1.5V

• 0.05%/0.05° diff. gain/diff. phase into 150Ω

• 1200V/µs slew rate

• Large output drive current: 55mA

• Available in single EL2186 and dual EL2286

• Non power-down versions available in single, dual, and quad EL2180, EL2280, EL2480

• Lower power EL2170/EL2176 family also available 1mA/70MHz in single, dual, and quad

• Pb-free available

Applications

• Low power/battery applications

• HDSL amplifiers

• Video amplifiers

• Cable drivers

• RGB amplifiers

• Test equipment amplifiers

• Current to voltage converters

• Multiplexing

• Video broadcast equipment
