EPC1PC8

FPGA 5V 8Pin PDIP

This datasheet describes configuration devices for SRAM-based look-up table LUT devices.

Features

Configuration devices for SRAM-based LUT devices offer the following features:

■ Configures ACEX 1K, APEX 20K including APEX 20K, APEX 20KC, and APEX 20KE, APEX II, Arria GX, Cyclone, Cyclone II, FLEX 10K including FLEX 10KE and FLEX 10KA Mercury, Stratix, Stratix GX, Stratix II, and Stratix II GX devices

■ Easy-to-use four-pin interface

■ Low current during configuration and near-zero standby mode current

■ Programming support with the Altera Programming Unit APU and programming hardware from Data I/O, BP Microsystems, and other third-party programmers

■ Available in compact plastic packages

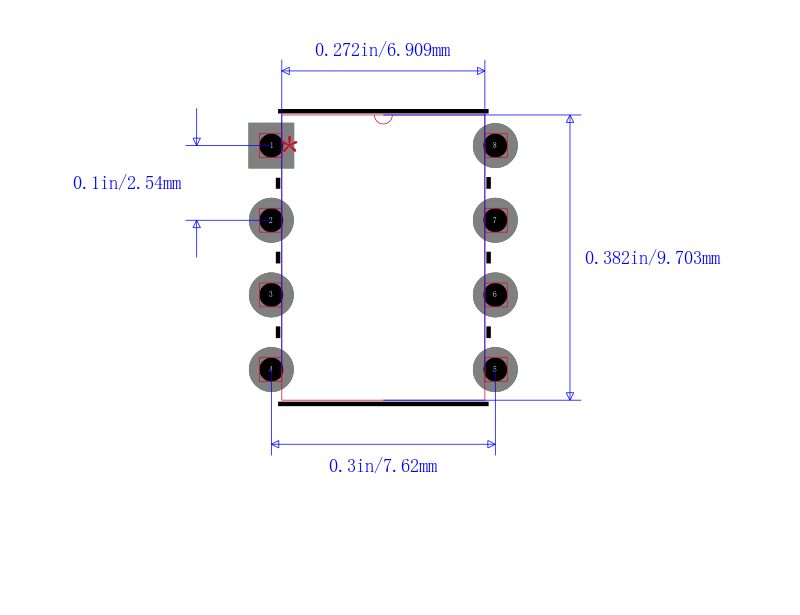

■ 8-pin plastic dual in-line PDIP package

■ 20-pin plastic J-lead chip carrier PLCC package

■ 32-pin plastic thin quad flat pack TQFP package

■ EPC2 device has reprogrammable flash configuration memory

■ 5.0-V and 3.3-V in-system programmability ISP through the built-in IEEE Std.

1149.1 JTAG interface

■ Built-in JTAG boundary-scan test BST circuitry compliant with IEEE Std. 1149.1

■ Supports programming through Serial Vector Format File .svf, Jam Standard Test and Programming Language STAPL Format File .jam, JAM Byte Code File .jbc, and the Quartus II and MAX+PLUS II softwares using the USB-Blaster, MasterBlaster, ByteBlaster II, EthernetBlaster, or ByteBlasterMV download cable

■ Supports programming through Programmer Object File .pof for EPC1 and EPC1441 devices

■ nINIT_CONF pin allows INIT_CONF JTAG instruction to begin FPGA configuration
