ECA-2EM3R3
数据手册.pdfPanasonic(松下)
被动器件
铝电解电容器 - 径向引线型 3.3UF 250V ALUM LYTIC RADIAL

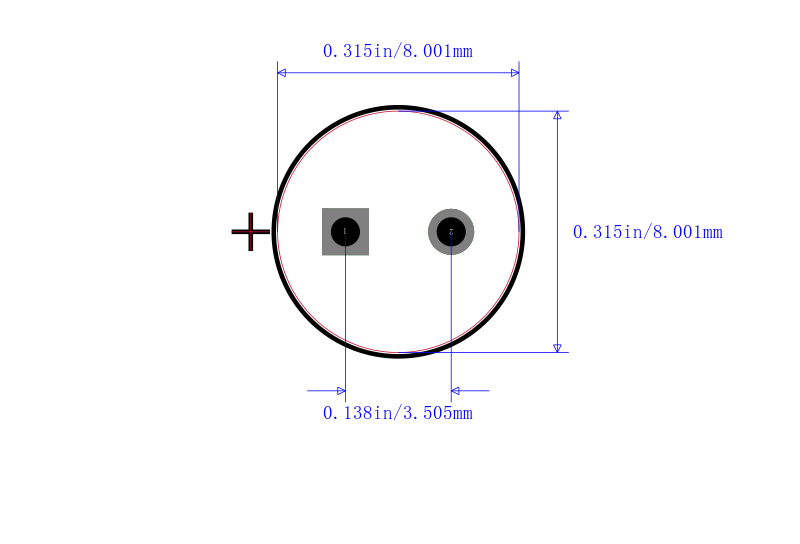

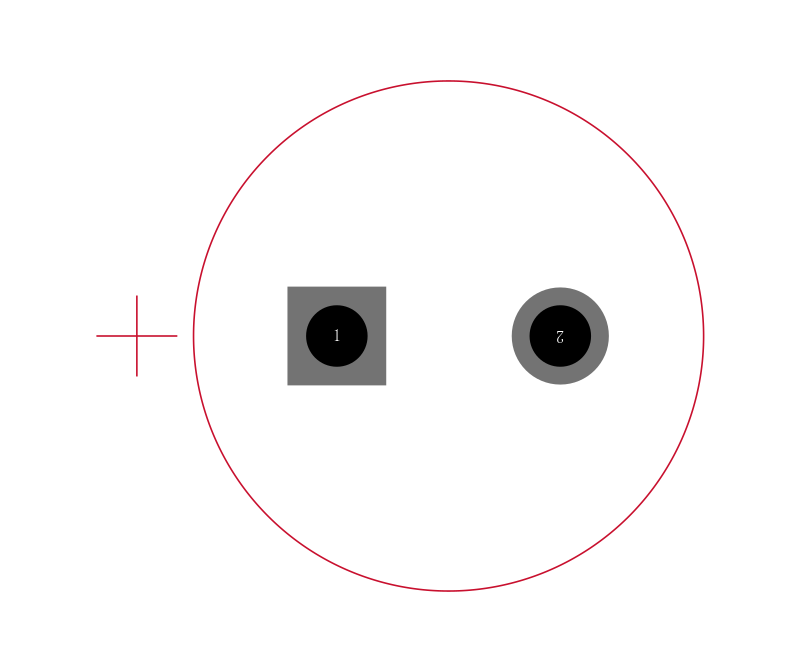

Using this electrolytic aluminum capacitor from in your electronic circuit you"ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The ECA-2EM3R3 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. Its leakage current is 59.5@2Min μA. This product is 11.5 mm tall with a diameter of 8 mm. Its capacitance value is 3.3uF. It has a tolerance of 20%.
