DEBB33F332KA3B

DEB 系列树脂涂层高压盘式陶瓷电容器，特别适合开关电路中的高频去耦。### 注不适于电源抑制使用，请查看 X 和 Y 抑制电容器的部分。### 高压盘式陶瓷

DEB 系列

树脂涂层高压盘式陶瓷器，特别适合开关电路中的高频去耦。

### 注

不适于电源抑制使用，请查看 X 和 Y 抑制电容器的部分。

立创商城:
3.3nF ±10% 3.15kV

欧时:
Murata DEB 系列 3.3nF 3.15kV dc B电介质 通孔 单层陶瓷电容器 SLCC DEBB33F332KA3B, ±10%容差

艾睿:

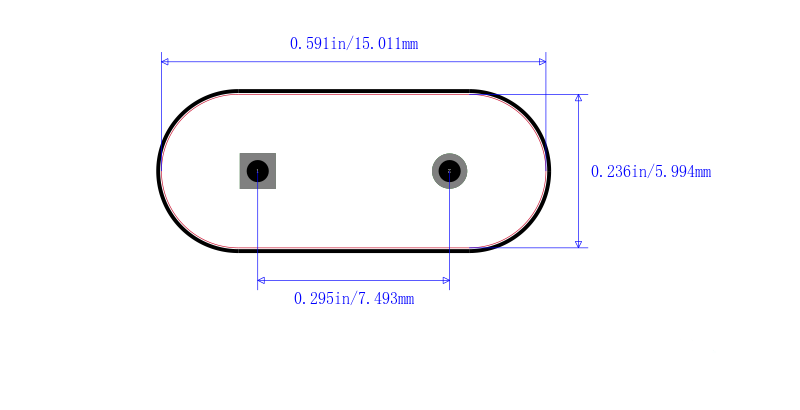

Thanks to the low cost ceramic disc DEBB33F332KA3B single-layer ceramic disc capacitor, you can feel rest assured that heat will be properly dissipated thanks to a ceramic dielectric. It can withstand a voltage of 3150 VDC. This high frequency capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 0.0033uF. The DEBB33F332KA3B high frequency capacitor has a radial termination style. It has a tolerance of 10%. This part has a lead diameter of 0.6 mm and a pitch of 7.5 mm. This product is 6Max mm deep.

安富利:
Cap Ceramic 0.0033uF 3150V B 10% 15 X 6mm Radial 7.5mm 85°C Bulk

富昌:
DEB Series 3300 pF ±10% 3.15 kV Ø15 x 6 mm LS=7.5 mm Radial Ceramic Capacitor

Chip1Stop:
Cap Ceramic 0.0033uF 3150V B 10% 15 X 6mm Radial 7.5mm 85ÂÂ℃ Bulk
