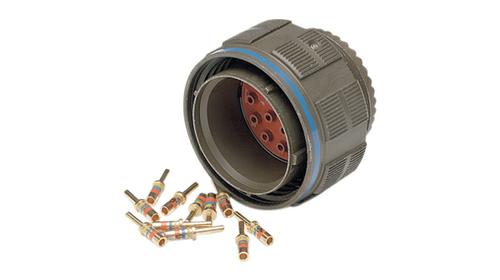

D38999/26WC8PN

D38999/26WC8PN

数据手册.pdf
Amphenol(安费诺) 连接器与适配器

Conn MIL-DTL-38999 Circular PIN 8POS Crimp ST Cable Mount 8 Terminal 1Port

8 针位圆形 插头,公引脚 压接


得捷:
CONN PLUG MALE 8POS GOLD CRIMP


e络盟:
The D38999/26WC8PN from Amphenol is MIL-DTL-38999 Series III straight plug with 8 contacts. MIL-DTL-38999 Series III connectors are available in wide range of shell materials and finishes with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration.


艾睿:
Conn Circular PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port


Chip1Stop:
Conn MIL-DTL-38999 Circular PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port


Verical:
Conn Circular PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port


Newark:
# AMPHENOL AEROSPACE  D38999/26WC8PN  Circular Connector, MIL-DTL-38999 Series III, Straight Plug, 8 Contacts, Crimp Pin, Threaded, 13-8


D38999/26WC8PN中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Gold

拔插次数 500

工作温度Max 200 ℃

工作温度Min -65 ℃

额定电压 850VDC, 600VAC

外形尺寸

长度 31.34 mm

物理参数

外壳颜色 Olive Drab

触点材质 Copper Alloy

外壳材质 Aluminum

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Aerospace, Defence, Military, Industrial, 航天,航空,军事

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

军工级 Yes

D38999/26WC8PN引脚图与封装图
暂无图片
在线购买D38999/26WC8PN
型号 制造商 描述 购买
D38999/26WC8PN Amphenol 安费诺 Conn MIL-DTL-38999 Circular PIN 8POS Crimp ST Cable Mount 8 Terminal 1Port 搜索库存
替代型号D38999/26WC8PN
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: D38999/26WC8PN

品牌: Amphenol 安费诺

封装: 8Contact Male

当前型号

Conn MIL-DTL-38999 Circular PIN 8POS Crimp ST Cable Mount 8 Terminal 1Port

当前型号

型号: D38999/26FC8PN

品牌: 安费诺

封装: 8Contact Male

完全替代

Circular MIL Spec Connector 8P PLG SZ 13Pin CBL MNT

D38999/26WC8PN和D38999/26FC8PN的区别

型号: MS27467T13F8P

品牌: ITT电子

封装:

类似代替

ITT CANNON  MS27467T13F8P  圆形连接器, MIL-DTL-38999 I系列, 直型插头, 8 触点, 压接引脚, 卡口, 13-8

D38999/26WC8PN和MS27467T13F8P的区别

型号: MS27467T13B8P

品牌: ITT电子

封装:

类似代替

ITT CANNON  MS27467T13B8P  圆形连接器, MIL-DTL-38999 I系列, 直型插头, 8 触点, 压接引脚, 卡口, 13-8

D38999/26WC8PN和MS27467T13B8P的区别
