DS1233M-55+
数据手册.pdfMaxim Integrated(美信)
主动器件
MAXIM INTEGRATED PRODUCTS DS1233M-55+ 芯片, 微处理器监控器, 5.5V, TO-92-3

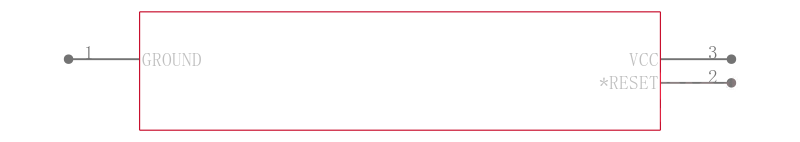

The is a EconoReset in 3 pin TO-92 package. The EconoReset uses a precision temperature compensated reference and comparator circuit to monitor the status of the power supply VCC and warning a processor based system of impending power failure. When an out of tolerance condition is detected, an internal power-fail signal forces reset to active low state. When VCC returns to an intolerance condition, the reset signal is kept in the active state for approximately 350ms to allow the power supply and processor to stabilize.
- .
- Supply voltage range is 1.2V to 5.5V
- .
- Operating temperature range from -40°C to 85°C
- .
- Automatically restarts microprocessor after power failure
- .
- Reduces need for discrete components
- .
- Precision temperature compensated voltage reference and voltage sensor
- .
- Internal 5Kohm pull-up resistor
- .
- Compatible with Motorola 68XXX series and HC16 microprocessors
- .
- Pin function compatible with the Motorola MC33064, MC34064, MC33164 and MC34164
- .
- Voltage trip level is 4.625V
- .
- Active-low, open-drain reset type
