DAC8560IADGKTG4
数模转换器- DAC 16-Bit Ultra-Low Glitch Volt Out DAC
DESCRIPON
The DAC8560 is a low-power, voltage output, 16-bit digital-to-analog converter DAC. The DAC8560 includes a 2.5V, 2ppm/°C internal reference enabled by default, giving a full-scale output voltage range of 2.5V. The internal reference has an initial accuracy of 0.02% and can source up to 20mA at the VREF pin. The device is monotonic, provides very good linearity, and minimizes undesired code-to-code transient voltages glitch. The DAC8560 uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz. It is compatible with standard SPI™, QSPI™, Microwire™, and digital signal processor DSP interfaces.
FEATURES
• Relative Accuracy: 4LSB
• Glitch Energy: 0.15nV-s
• MicroPower Operation: 510µA at 2.7V
• Internal Reference:
• 2.5V Reference Voltage enabled by default
• 0.02% Initial Accuracy
• 2ppm/°C Temperature Drift typ
• 5ppm/°C Temperature Drift max
• 20mA Sink/Source Capability
• Power-On Reset to Zero
• Power Supply: +2.7V to +5.5V
• 16-Bit Monotonic Over Temperature Range
• Settling Time: 10µs to ±0.003% FSR
• Low-Power Serial Interface with Schmitt-Triggered Inputs
• On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
• Power-Down Capability
• Drop-In Compatible With DAC8531/01 and DAC8550/51
• Temperature Range: –40°C to +105°C

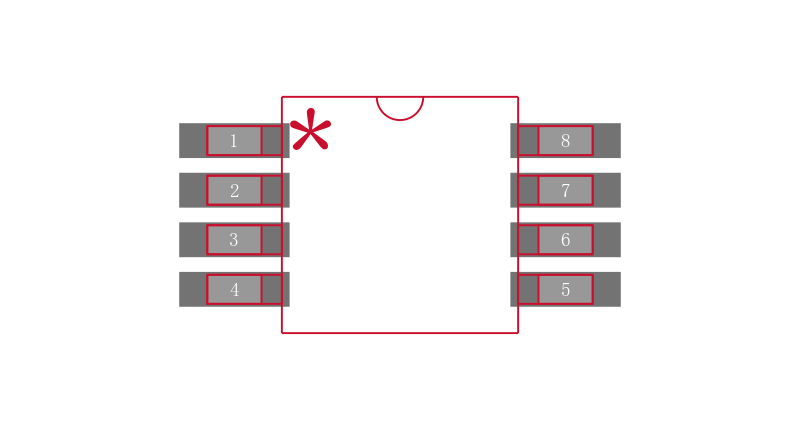

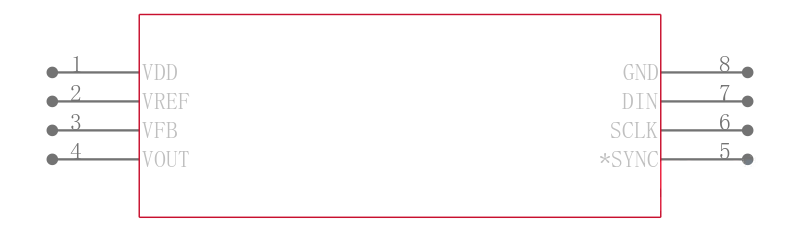

• Available in a Tiny MSOP-8 Package
APPLICATIONS
• Process Control
• Data Acquisition Systems
• Closed-Loop Servo-Control
• PC Peripherals
• Portable Instrumentation
