DSPIC33EP128GM706-I/MR

DSPIC33EP128GM706-I/MR

数据手册.pdf
Microchip(微芯) 主动器件

MCU 16Bit dsPIC Harvard 128KB Flash 3.3V 64Pin QFN EP Tube

dsPIC dsPIC™ 33EP Microcontroller IC 16-Bit 70 MIPs 128KB 43K x 24 FLASH 64-VQFN 9x9


得捷:
IC MCU 16BIT 128KB FLASH 64VQFN


立创商城:
dsPIC33EP128GM706-I/MR


艾睿:
Numerous circuit components and their functionalities can be centralized into one single unit with the DSPIC33EP128GM706-I/MR microcontroller from Microchip Technology! This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 70 MHz. This device is based on the dsPIC core architecture. This is a 16 bit processor. Its ADC resolution is 10/12. Its flash program memory is 128KB. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 3 V, while its maximum is 3.6 V.


Allied Electronics:
128KB Flash, 16KB RAM, 12 MCPWM, 8/8 IC/OC, 2 QEI, 4 Op-Amps, CTMU, PTG


安富利:
MCU 16-Bit dsPIC33 dsPIC RISC 128KB Flash 3.3V 64-Pin QFN EP Tube


Verical:
MCU 16-bit dsPIC 128KB Flash 3.3V 64-Pin QFN EP Tube


DSPIC33EP128GM706-I/MR中文资料参数规格
技术参数

频率 70 MHz

RAM大小 16 KB

位数 16

模数转换数ADC 2

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 64

封装 QFN-64

外形尺寸

封装 QFN-64

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

DSPIC33EP128GM706-I/MR引脚图与封装图
DSPIC33EP128GM706-I/MR引脚图

DSPIC33EP128GM706-I/MR引脚图

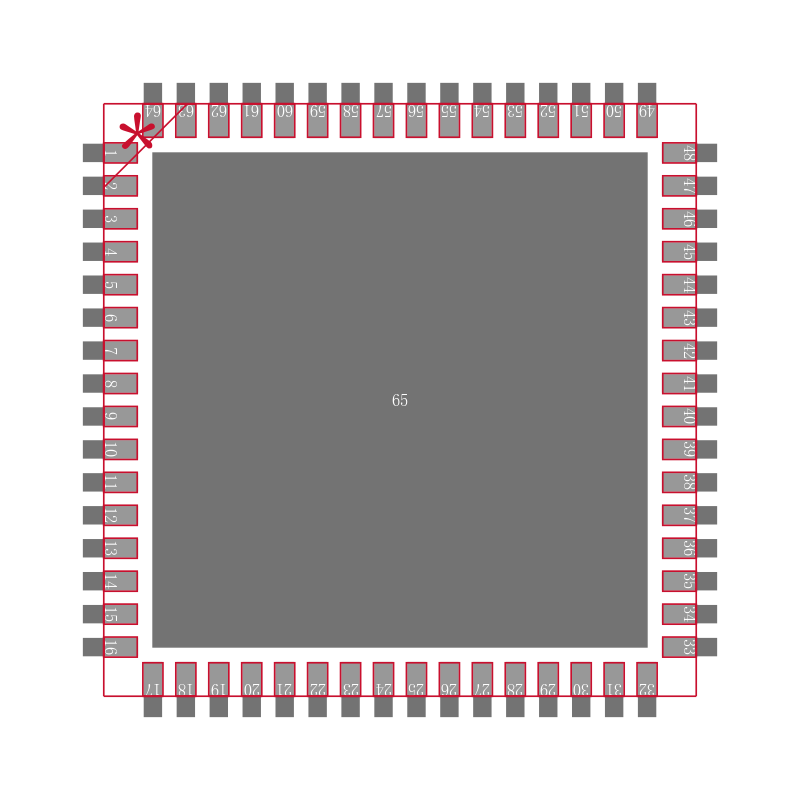

DSPIC33EP128GM706-I/MR封装图

DSPIC33EP128GM706-I/MR封装图

DSPIC33EP128GM706-I/MR封装焊盘图

DSPIC33EP128GM706-I/MR封装焊盘图

在线购买DSPIC33EP128GM706-I/MR
型号 制造商 描述 购买
DSPIC33EP128GM706-I/MR Microchip 微芯 MCU 16Bit dsPIC Harvard 128KB Flash 3.3V 64Pin QFN EP Tube 搜索库存
替代型号DSPIC33EP128GM706-I/MR
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: DSPIC33EP128GM706-I/MR

品牌: Microchip 微芯

封装: QFN

当前型号

MCU 16Bit dsPIC Harvard 128KB Flash 3.3V 64Pin QFN EP Tube

当前型号

型号: DSPIC33EP128GM706T-I/MR

品牌: 微芯

封装: QFN

类似代替

128KB Flash, 16KB RAM, 12 MCPWM, 8/8 IC/OC, 2 QEI, 4 Op-Amps, CTMU, PTG, 64 QFN 9x9x0.9mm T/R

DSPIC33EP128GM706-I/MR和DSPIC33EP128GM706T-I/MR的区别
