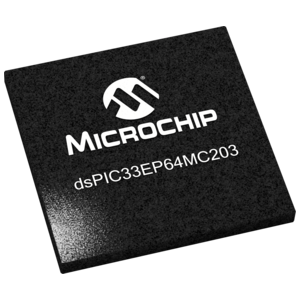

DSPIC33EP64MC203-I/TL

16Bit DSC 64KB Flash 8KB RAM 60MHz 64Pin MCPWM QEI CAN 3 OpAmp 4 Comp

* **Operating Conditions** 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS**dsPIC33E DSC Core** Modified Harvard Architecture C Compiler Optimized Instruction Set 16-bit Wide Data Path 24-bit Wide Instructions 16x16 Integer Multiply Operations 32/16 and 16/16 Integer Divide Operations Two 40-bit Accumulators with Rounding and Saturation Options Single-Cycle Multiply and Accumulate Single-Cycle shifts for up to 40-bit Data 16x16 Fractional Multiply/Divide Operations**High-Speed PWM** Up to three PWM pairs with independent timing Dead time for rising and falling edges 7.14 ns PWM resolution PWM support for:- Inverters, PFC, Lighting- BLDC, PMSM, ACIM, SRM Programmable Fault inputs Flexible trigger configurations for ADC conversions**Advanced Analog Features** ADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or12-bit, 500 ksps with one S&H Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module- Additional dedicated comparator- Programmable references with 32 voltage points for comparators Charge Time Measurement Unit CTMU:- Supports mTouch™ capacitive touch sensing**Timers/Output Compare/Input Capture** 12 general purpose timers:- Five 16-bit and up to two 32-bit timers/counters- Four OC modules configurable as timers/counters- PTG module with two configurable timers/counters- 32-bit Quadrature Encoder Interface QEI module configurable as a timer/counter Four IC modules Peripheral Trigger Generator PTG for scheduling complex sequences**Communication Interfaces** Two UART modules 15 Mbps Two 4-wire SPI modules 15 Mbps Two I2C™ modules up to 1 Mbaud with SMBus support PPS to allow function remap Programmable Cyclic Redundancy Check CRC**Direct Memory Access DMA** 4-channel DMA with user-selectable priority arbitration UART, SPI, ADC, IC, OC, and Timers
