DC1041A-B

电源管理IC开发工具 LTM4601HV Demo Board 28VIN, 12A Step-Down Module Regulator

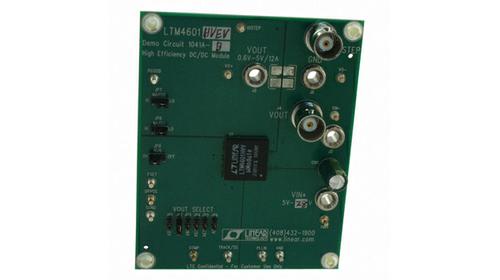

The is a demonstration board incorporating LTM4601HVEV DC to DC µModule regulator. The LTM4601HVEV is a complete 12A step down switch mode DC to DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The input voltage range is from 4.5V to 28V. The output voltage is jumper selectable for popular voltages from 0.6V to 5V. The PLLIN pin supports synchronizing the µModule regulator to an external clock. The TRACK/SS pin allows the user to program output ramp-up and ramp-down rates which may coincidentally or ratiometrically track with another supply"s output if desired. Output voltage margining of ±5% from the nominal value is available via the margin control pins MARG0 and MARG1.

.

Default operating frequency of 800KHz

.

External synchronous clock frequency range from 560KHz to 1000KHz

.

83% efficiency

.

Output voltage tracking and margining

.

Parallel multiple µModule regulators for current sharing

.

Differential remote sensing for precision regulation

.

PLL frequency synchronization

.

±1.5% regulation

.

Current foldback protection disabled at start up

.

Ultrafast transient response
