DC100D100C

DC100D100C

数据手册.pdf
Crydom 快达 继电器、I/O模块

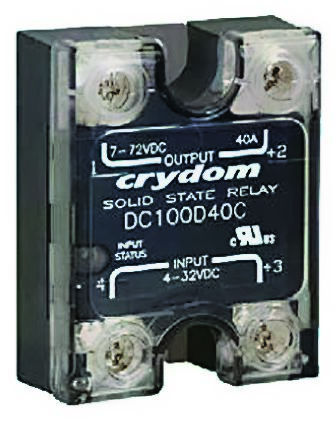

Panel Mount - PowerPlus DCOptically Isolated MOSFET output AC and DC control Easily paralleled for higher-current applications LED status indicator Optional IP20 cover Manufacturer Part Numbers ending with a C ### 认可UL, CE### 直流切换

Panel Mount - PowerPlus DC

Optically Isolated MOSFET output

AC and DC control

Easily paralleled for higher-current applications

LED status indicator

Optional IP20 cover Manufacturer Part Numbers ending with a C

### 认可

UL, CE


欧时:
SSR, High Current,100A,4-32Vdc,IP20


艾睿:
Relay SSR 12mA 32V DC-IN 100A 72V DC-OUT 4-Pin


Allied Electronics:
SPST-NO Solid State Relay Screw Smnt, Instantaneous MOSFET, 100 A, 32 V dc


Verical:
Relay SSR 12mA 32V DC-IN 100A 72V DC-OUT 4-Pin


Newark:
# CRYDOM  DC100D100C  Solid State Relay, 100 A, Panel, Screw, 7 VDC, 72 VDC


MASTER:
Solid State Relay 12mA 32V DC-IN 100A 72V DC-OUT 4-Pin


Online Components:
Relay SSR 12mA 32V DC-IN 100A 72V DC-OUT 4-Pin


Electro Sonic:
Solid State Relay 12mA 32V DC-IN 100A 72V DC-OUT 4-Pin


DC100D100C中文资料参数规格
技术参数

工作电压 72.0V max

额定电流 100 A

输出电流 100000 mA

负载电流 100 A

输入电流 12 mA

隔离电压 2500 v

输入电压Max 32 V

输入电压Min 4 V

输出电压Max 72 V

输出电流Max 100 A

输入电流Min 12 mA

负载电流Max 100 A

负载电流Min 2.5 mA

工作温度Max 80 ℃

工作温度Min -30 ℃

额定电压 100 VDC

工作电压Min 7 VDC

工作电压Max 72 VDC

输入电压 32 V

封装参数

安装方式 Surface Mount

引脚数 4

封装 Hockey Puck

外形尺寸

长度 58.2 mm

高度 32.9 mm

封装 Hockey Puck

物理参数

工作温度 -30℃ ~ 80℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8536490080

DC100D100C引脚图与封装图
暂无图片
在线购买DC100D100C
型号 制造商 描述 购买
DC100D100C Crydom 快达 Panel Mount - PowerPlus DC Optically Isolated MOSFET output AC and DC control Easily paralleled for higher-current applications LED status indicator Optional IP20 cover Manufacturer Part Numbers ending with a C ### 认可 UL, CE ### 直流切换 搜索库存
