DALC208SC6

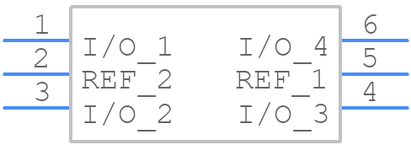

STMICROELECTRONICS  DALC208SC6  静电保护装置, 排列, SOT-23, 6 引脚, 1.2 V

极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 9V 反向击穿电压VBRBreakdown Voltage| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 峰值脉冲电流IPPmPeak Forward Surge Current| 0.7A/700mA 额定耗散功率PdPower dissipation| Description & Applications| FEATURES • low capacitance diode array • protection of 4 lines peak reverse voltage:VRRM = 9 V per diode • very low capacitance:C < 5 pF • very low leakage current: IR < 1 µA • sensitive logic input protection • microprocessor based equipment • audio / Video inputs • portable electronics • networks • ISDN equipment • USB interface 描述与应用| 特点 •低电容阵列 •峰值反向电压保护4线：VRRM= 9 V每二极管 •非常低的电容：C<5 PF •非常低的漏电流：IR<1μA •敏感的逻辑输入保护 •基于微处理器的设备 •音频/视频输入 •便携式电子产品 •网络 •ISDN设备 •USB接口
