CS5534-BS

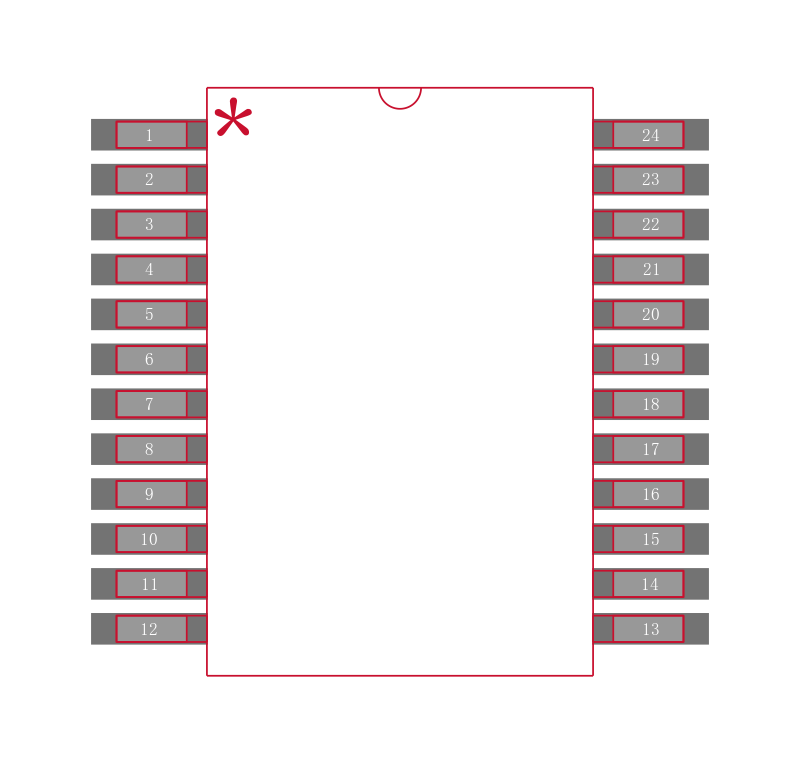

数据手册.pdfQuad Channel Single ADC Delta-Sigma 3.84KSPS 24Bit Serial Automotive 24Pin SSOP
General Description
The CS5532/34 are highly integrated ∆ΣAnalog-to-Digital Converters ADCs which use charge-balance techniques to achieve 24-bit performance. The ADCs are optimized for measuring low-level unipolar or bipolar signals in weigh scale, process control, scientific, and medical applications.
Features
Chopper-stabilized PGIA Programmable
Gain Instrumentation Amplifier, 1x to 64x
– 6 nV/√Hz@ 0.1 Hz No 1/f noise at 64x
– 1200 pA Input Current with Gains >1
Delta-sigma Analog-to-digital Converter
– Linearity Error: 0.0007% FS
– Noise-free Resolution: Up to 23 bits
Two- or Four-channelDifferential MUX
Scalable Input Span via Calibration
– ±5 mV to differential ±2.5V
Scalable VREFInput: Up to Analog Supply
Simple Three-wire Serial Interface
– SPI™ and Microwire™ Compatible
– Schmitt Trigger on Serial Clock SCLK
R/W Calibration Registers Per Channel
Selectable Word Rates: 6.25 to 3,840 Sps
Selectable 50 or 60 Hz Rejection
Power Supply Configurations
– VA+ = +5 V; VA- = 0 V; VD+ = +3 V to +5 V
– VA+ = +2.5 V; VA- = -2.5 V; VD+ = +3 V to +5 V
– VA+ = +3 V; VA- = -3 V; VD+ = +3 V
