CS8415A-CSR

Digital Audio Interface Receiver 1RX 28Pin SOIC

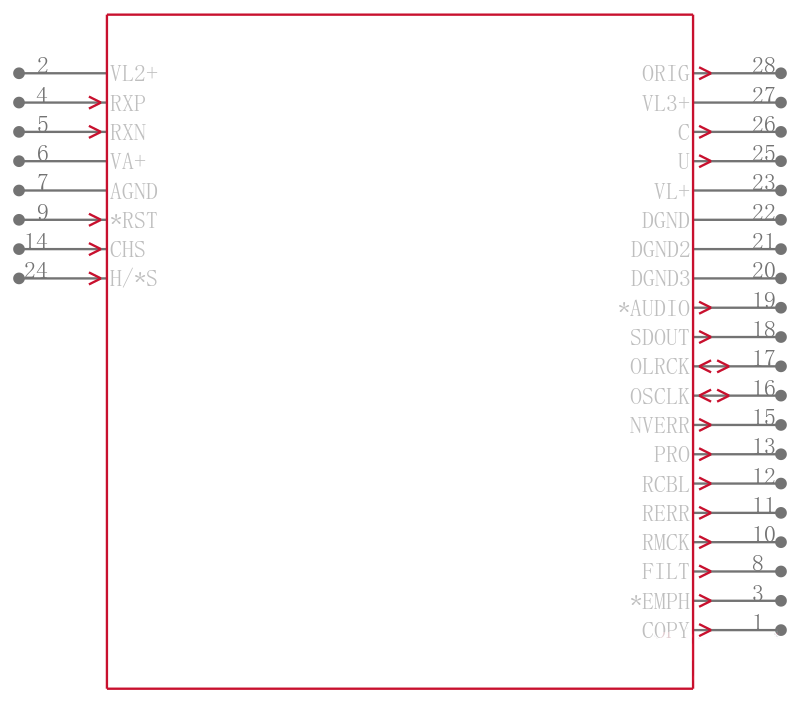

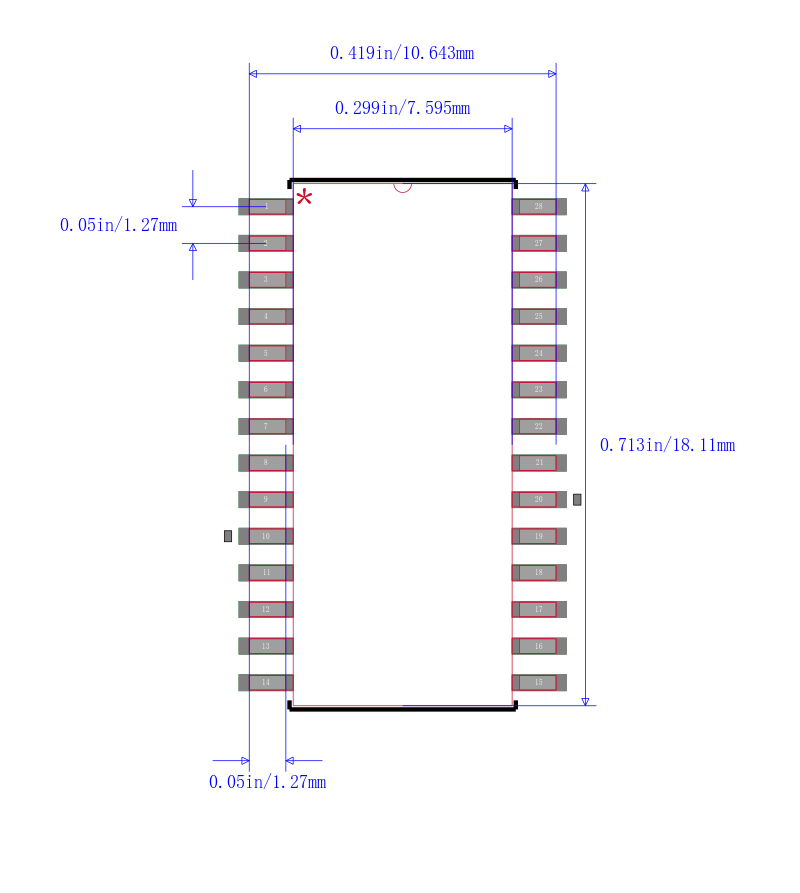

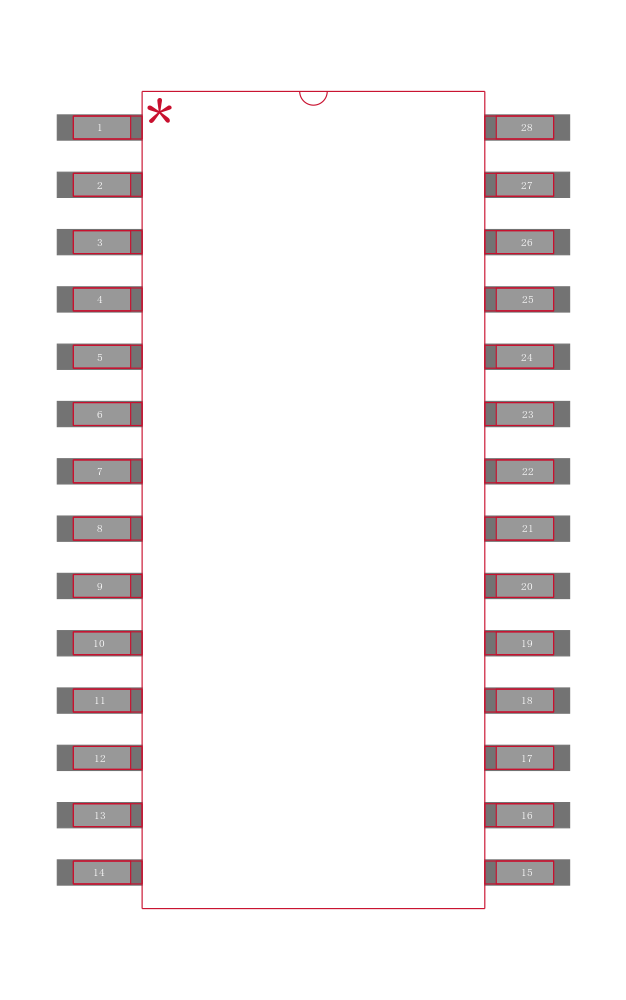

General Description

The CS8415A is a monolithic CMOS device which receives and decodes one of 7 channels of audio data according to the IEC60958, S/PDIF, EIAJ CP1201, or AES3. The CS8415A has a serial digital audio output port and comprehensive control ability through a 4-wire microcontroller port. Channel status and user data are assembled in block-sized buffers, making read access easy.

A low-jitter clock recoverymechanism yields a very clean recovered clock from the incoming AES3 stream.

Features

Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF-compatible Receiver

+5.0 V Analog Supply VA+

+3.3 V or +5.0 V Digital Interface VL+

7:1 S/PDIF Input MUX

Flexible 3-wire Serial Digital Output Port

8-kHz to 96-kHz Sample Frequency Range

Low-jitter Clock Recovery

Pin and Microcontroller Read Access to Channel Status and User Data

Microcontroller and Standalone Modes

Differential Cable Receiver

On-chip Channel Status and User Data Buffer Memories

Auto-detection of Compressed Audio Input Streams

Decodes CD Q Sub-Code

OMCK System Clock Mode
