CLP-113-02-F-D

板至板连接, 1.27 mm, 26 触点, 插座, CLP Series, 表面安装　, 2 排

The CLP series from are Tiger Claw low profile rugged reliable dual wipe socket strips. These surface mount socket strips mates with Samtec FTSH, FTS and FW series of connectors.

.

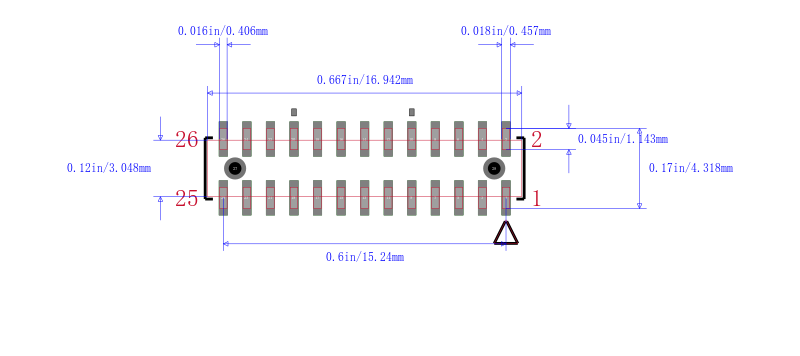

Pitch spacing is 1.27mm 2 to 50 contacts per row with double row -D

.

High operating temperature range of -55°C to 125°C

.

Contact material is phosphor bronze

.

Black liquid crystal polymer insulator material

.

Voltage rating is 240VAC/340VDC

.

Complies with UL E111594 standard

.

Gold flash plated contacts
