CES-108-01-G-S

板至板连接, 2.54 mm, 8 触点, 插座, CES Series, 通孔安装, 1 排

8 位置 插座 通孔

得捷:
CONN RCPT 8POS 0.1 GOLD PCB

欧时:
.100" Low Profile Socket 8 P 10µ" Au

e络盟:
板至板连接, 2.54 mm, 8 触点, 插座, CES Series, 通孔安装, 1 排

艾睿:

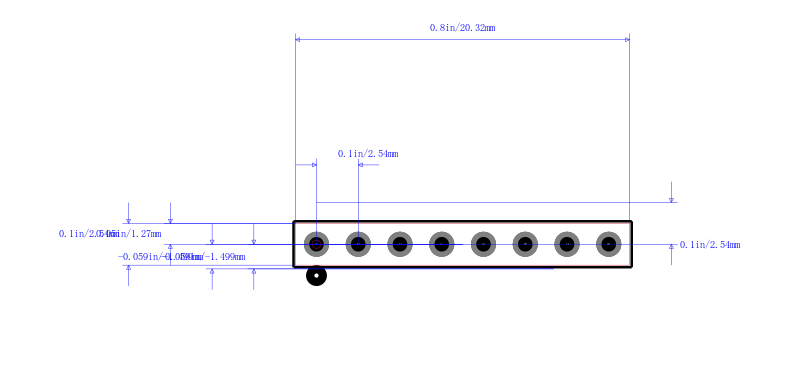

Reduce safety concerns with this socket strip CES-108-01-G-S header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 400 VAC. It has a straight body orientation. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. CES-108-01-G-S is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 20.32 mm long, 5.08 mm tall and 3.05 mm deep.

安富利:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  CES-108-01-G-S  Board-To-Board Connector, 2.54 mm, 8 Contacts, Receptacle, CES Series, Through Hole, 1 Rows
