CES-106-01-S-D

Conn Socket Strip SKT 12POS 2.54mm Solder ST Thru-Hole Tube

12 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT 12POS 0.1 GOLD PCB

艾睿:

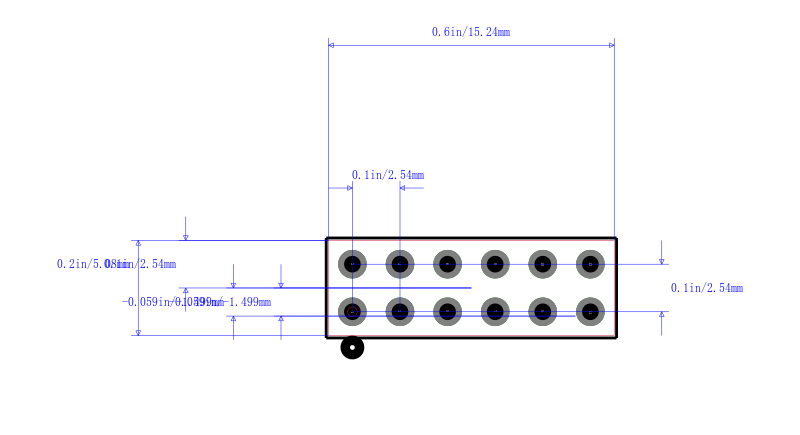

This socket strip CES-106-01-S-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. It has a socket type gender. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 15.24 mm long, 5.08 mm tall and 5.59 mm deep. CES-106-01-S-D is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

Verical:
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Top Entry Thru-Hole Tube
