CS5516-ASZ

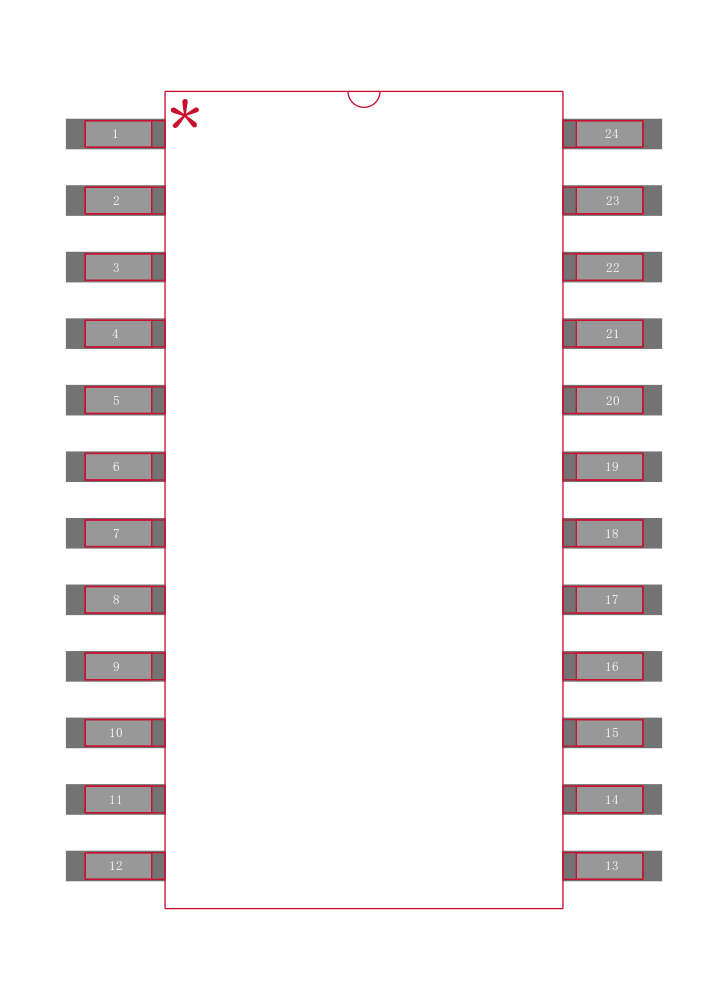

16Bit ADC, SMD, 5516, SOIC24 Resolution: 16Bit Sampling Rate: 60SPS Input Type: Differential Interface Type: Serial, ...

Description

The CS5516 and CS5520 are complete solutions for digitizing low level signals from strain gauges, load cells,and pressure transducers. Any family of mV output transducers, including those requiring bridge excitation, can be interfaced directly to the CS5516 or CS5520. The devices offer an on-chip software programmable instrumentation amplifier block, choice of DC or AC bridge excitation, and software selectable reference and signal demodulation.

Features

• On-chip Instrumentation Amplifier

• On-chip Programmable Gain Amplifier

• On-Chip 4-Bit D/A For Offset Removal

• Dynamic Excitation Options

• Linearity Error: ±0.0015% FS

  - 20-bit,No Missing Codes

• CMRR at 50/60 Hz > 200 dB

• System Calibration Capability with calibration read/write option

• 3-, 4-,or 5-wire Serial Communications Port

• Low Power Consumption: 40 mW

  - 10 µW Standby Mode for Portable applications
