CES-104-01-T-S
数据手册.pdfSAMTEC CES-104-01-T-S 板至板连接, 单路, CES系列, 4 触点, 插座, 2.54 mm, 通孔安装, 1 排
薄型 2.54mm 闭口插座板 - CES 系列
CES 系列板对板通孔闭口插座板，节距为 2.54mm。 这些板对板印刷电路板插座板具有薄型设计，带 3.25mm 焊接尾线。 这些 CES 系列板对板印刷电路板闭口插座板的主体由黑色玻璃填充聚酯制成，触点由无光泽镀锡的磷青铜制成。 使用这些薄型板对板插座板适宜的温度范围是 -55°C 至 +105°C。
部件号 CES-1XX-01-X-S 是单排插座板
部件号 CES-1XX-01-X-D 是双排插座板
### 注
这些 CES 系列薄型板对板 PCB 插座板可与以下部件配用：
TLW 系列薄型方形支柱管座：请参见库存号 765-6168（典型）
TSM 系列方形支柱管座：请参见库存号 765-6613（典型）。
TSW 系列方形支柱管座：请参见库存号 767-1044（典型）。
得捷:
CONN RCPT 4POS 0.1 TIN PCB
欧时:
Receptacle 2.54mm PCB 4way
立创商城:
2.54mm
e络盟:
板至板连接, 单路, 2.54 mm, 4 触点, 插座, CES系列, 通孔安装, 1 排
艾睿:

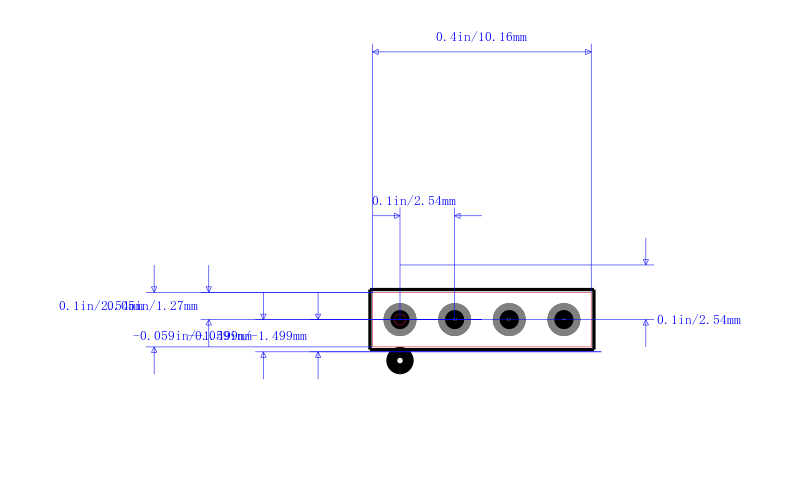

Support physical configuration options for jumper posts by mounting this socket strip CES-104-01-T-S header connector from Samtec. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a socket type gender. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. This product is 10.16 mm long, 5.08 mm tall and 3.05 mm deep. It uses the solder termination method. CES-104-01-T-S is housed in black polyester.
安富利:
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Bulk
Newark:
# SAMTEC CES-104-01-T-S Board-To-Board Connector, CES Series, 4 Contacts, Receptacle, 2.54 mm, Through Hole, 1 Rows
