CY74FCT16500CTPVC

18位寄存收发器 18-Bit Registered Transceivers

Functional Description

These 18-bit universal bus transceivers can be operated in transparent, latched, or clock modes by combining D-type latches and D-type flip-flops.

Features

• FCT-C speed at 4.6 ns

• Power-off disable outputs permits live insertion

• Edge-rate control circuitry for significantly improved noise characteristics

• Typical output skew < 250 ps

• ESD > 2000V

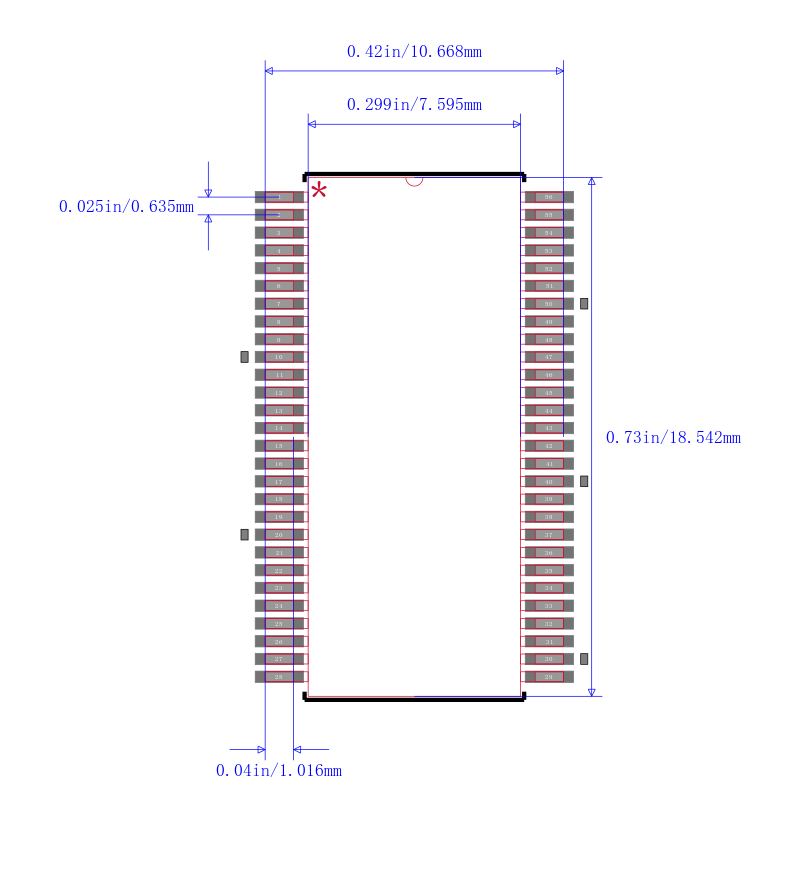

• TSSOP 19.6-mil pitch and SSOP 25-mil pitch packages

• Industrial temperature range of−40˚C to +85˚C

•VCC= 5V±10%

CY74FCT16500T Features:

• 64 mA sink current, 32 mA source current

• Typical VOLPground bounce <1.0V at VCC= 5V,TA= 25˚C

CY74FCT162500T Features:

• Balanced 24 mA output drivers

• Reduced system switching noise

• Typical VOLPground bounce <0.6V at VCC= 5V, TA= 25˚C
