CW252016-R82J
数据手册.pdf高Q值的片式电感器 High Q Chip Inductors
820nH Unshielded Inductor 360mA 2.3Ohm Max 1008 2520 Metric
立创商城:
820nH ±5% 2.3Ω
得捷:
FIXED IND 820NH 360MA 2.3OHM SMD
艾睿:

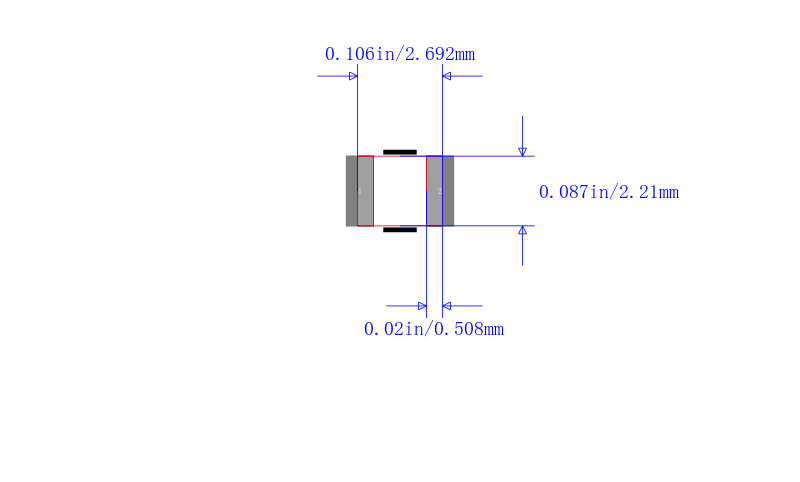

Make any circuit look clean and compact using this chip CW252016-R82J surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 350M Hz. This product is 2.7 mm long, 1.8 mm tall and 2.2 mm deep. This SMD inductor has a maximum DC current of 360m A with a maximum resistance of 2.3 Ohm. It has a tolerance of 5%. It has an inductance of 820n H.
安富利:
Ind Chip Wirewound 820nH 5% 25MHz 45Q-Factor Ceramic 360mA 1008 T/R
Chip1Stop:
Inductor Chip Wirewound 820nH 5% 25MHz 45Q-Factor Ceramic 360mA 2.3Ohm DCR 1008 T/R
Verical:
Inductor RF Wirewound 0.82uH 5% 25.2MHz 45Q-Factor Ceramic 0.18A 2.3Ohm DCR 1008 T/R
MASTER:
Inductor RF Wirewound 0.82uH 5% 25.2MHz 45Q-Factor Ceramic 0.18A 2.3Ohm DCR 1008 T/R
Electro Sonic:
Inductor RF Wirewound 0.82uH 5% 25.2MHz 45Q-Factor Ceramic 0.18A 2.3Ohm DCR 1008 T/R
