CFM14JT4R30

CFM14JT4R30

数据手册.pdf
Stackpole Electronics 电子元器件分类

4.3Ω ±5% 0.25W1/4W ±400ppm/℃ Φ1.70mm

Do your through-hole printed circuit specifications require some resistance between components? SEI can offer you a cost-effective solution with their fixed single through-hole resistor. This product has a resistance value of 4.3 Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±400 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes carbon film technology. The CFM14JT4R30 part has an axial termination style. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This product is 3.3 mm long.

CFM14JT4R30中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

产品系列 CFM

电阻 4.3 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 3.3 mm

直径 Φ1.70mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±400 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

CFM14JT4R30引脚图与封装图
CFM14JT4R30引脚图

CFM14JT4R30引脚图

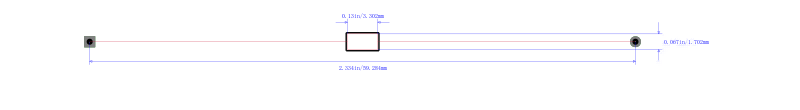

CFM14JT4R30封装图

CFM14JT4R30封装图

CFM14JT4R30封装焊盘图

CFM14JT4R30封装焊盘图

在线购买CFM14JT4R30
型号 制造商 描述 购买
CFM14JT4R30 Stackpole Electronics 4.3Ω ±5% 0.25W1/4W ±400ppm/℃ Φ1.70mm 搜索库存
替代型号CFM14JT4R30
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号： CFM14JT4R30

品牌： Stackpole Electronics

封装： Axial 4.3ohms 5per 0.25W

当前型号

4.3Ω ±5% 0.25W1/4W ±400ppm/℃ Φ1.70mm

当前型号

型号： ERD-S2TJ4R3V

品牌： 松下

封装： Axial 4.3Ω ±5% 250mW 250V

类似代替

碳膜电阻器 - 透孔 Carbon Film Resistor Leaded 1/4W 5%

CFM14JT4R30和ERD-S2TJ4R3V的区别

型号： CF18JT4R30

品牌： Stackpole Electronics

封装： 4.3ohms 0.125W 5per

功能相似

4.3Ω ±5% 0.125W1/8W ±400ppm/℃ Φ1.70mm

CFM14JT4R30和CF18JT4R30的区别
