CY8C3865PVI-060

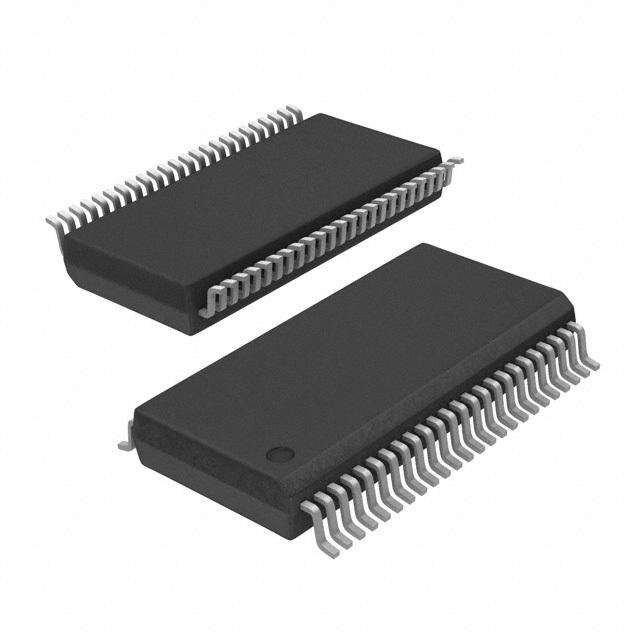

数据手册.pdfCYPRESS SEMICONDUCTOR CY8C3865PVI-060 微控制器, 8位, PSOC3, CY8C38xxx, 67 MHz, 32 KB, 4 KB, 48 引脚, SSOP
The is a 8-bit PSoC®3 true System-on-Chip Microcontroller Unit with memory, analog and digital peripheral functions. The CY8C38 family offers a modern method of signal acquisition, signal processing and control with high accuracy, high bandwidth and high flexibility. Analog capability spans the range from thermocouples to ultrasonic signals. The CY8C38 family can handle dozens of data acquisition channels and analog inputs on every general-purpose input/output GPIO pin. The CY8C38 family is also a high-performance configurable digital system with some part numbers including interfaces such as USB, multi master inter-integrated circuit I²C and controller area network CAN. In addition to communication interfaces, the CY8C38 family has an easy to configure logic array, flexible routing to all I/O pins and a high-performance single cycle 8051 microprocessor core.
- .
- Single cycle 8051 CPU
- .
- Multiply and divide instructions
- .
- 24-channel Direct memory access DMA with multilayer AHB bus access
- .
- Any GPIO to any digital or analog peripheral routability
- .
- LCD direct drive from any GPIO, up to 46 x 16 segments
- .
- CapSense® support from any GPIO
- .
- 1.2 to 5.5V I/O Interface voltages, up to four domains
- .
- Maskable, independent IRQ on any pin or port
- .
- Schmitt-trigger transistor-transistor logic TTL inputs
- .
- All GPIO configurable as open drain high/low, pull-up/pull-down, High Z or strong output
- .
- Configurable GPIO pin state at power-on reset POR
- .
- 25mA Sink on SIO
- .
- Full CAN 2.0b 16 Receiver, 8 Transmitter buffers
- .
- USB 2.0 certified Full-Speed FS 12Mbps peripheral interface using internal oscillator
- .
- 67MHz, 24-bit Fixed point digital filter block DFB to implement FIR and IIR filters
- .
- Serial peripheral interface SPI, universal asynchronous transmitter receiver UART and I²C
- .
- Cyclic redundancy check CRC
- .
- Pseudo random sequence PRS generator
- .
- Local interconnect network LIN bus 2.0
- .
- Quadrature decoder
