BT136S-600D
数据手册.pdf双向可控硅逻辑电平 Triacs logic level
description

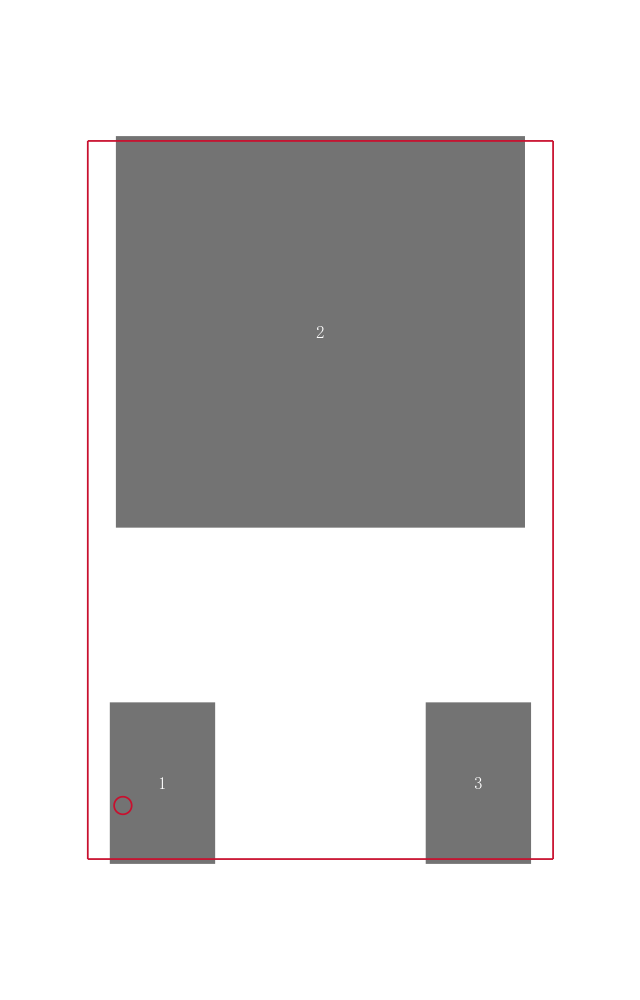

Planar passivated very sensitive gate four quadrant triac in a SOT428 DPAK
surface-mountable plastic package intended for use in general purpose bidirectional
switching and phase control applications, where high sensitivity is required in all four
quadrants. This very sensitive gate "series D" triac is intended to be interfaced directly to
microcontrollers, logic integrated circuits and other low power gate trigger circuits.
Features and benefits
• Direct triggering from low power drivers and logic ICs
• High blocking voltage capability
• Low holding current for low current loads and lowest EMI at commutation
• Planar passivated for voltage ruggedness and reliability
• Surface-mountable package
• Triggering in all four quadrants
• Very sensitive gate
