SAMTEC BCS-117-L-D-PE-BE Board-To-Board Connector, 2.54mm, 34Contacts, Receptacle, BCS Series, Solder, 2Rows

The BCS series from are Tiger Claw pass through socket strips. These through hole socket strips mates with Samtec TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW and PHT series of connectors.

.
Orderable with single and dual row -S/-D options
.
Pitch spacing is 2.54mm 1 to 50 contacts per row
.
Featured with pass through entry -PE option
.
Black liquid crystal polymer insulator material
.
Contact material is phosphor bronze
.
10µ" gold plated contacts
.
Tiger Claw contact system
.
Contact resistance is 10mohm
.
Complies with UL E111594 and CSA 090871_0_000 standards
.
High operating temperature range of -55°C to 125°C
BCS-117-L-D-PE-BE中文资料参数规格
技术参数

触点数 34

极性 Female

触点电镀 Gold

额定电流 4.6A/触头

排数 2

针脚数 34

额定电压 475 VAC

封装参数

安装方式 Through Hole

物理参数

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

制造应用 -, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

BCS-117-L-D-PE-BE引脚图与封装图

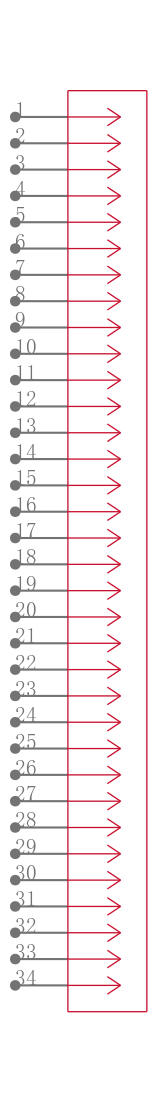

BCS-117-L-D-PE-BE引脚图

BCS-117-L-D-PE-BE引脚图

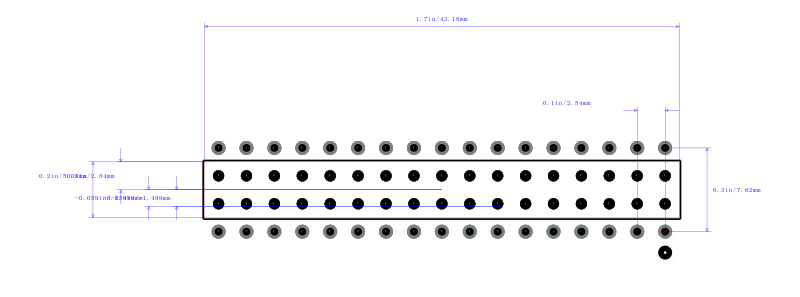

BCS-117-L-D-PE-BE封装图

BCS-117-L-D-PE-BE封装图

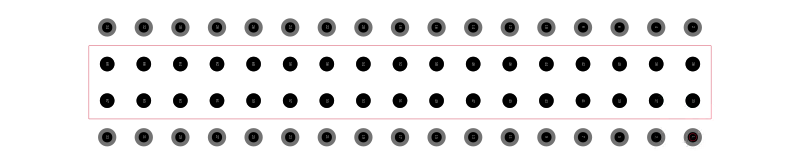

BCS-117-L-D-PE-BE封装焊盘图

BCS-117-L-D-PE-BE封装焊盘图

在线购买BCS-117-L-D-PE-BE
型号 制造商 描述 购买
BCS-117-L-D-PE-BE Samtec 申泰电子 SAMTEC BCS-117-L-D-PE-BE Board-To-Board Connector, 2.54mm, 34Contacts, Receptacle, BCS Series, Solder, 2Rows 搜索库存
