BCS-110-L-D-PE-BE
数据手册.pdfSamtec(申泰电子)
连接器与适配器
连接器
The BCS series from are Tiger Claw pass through socket strips. These through hole socket strips mates with Samtec TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW and PHT series of connectors.
- .
- Orderable with single and dual row -S/-D options
- .

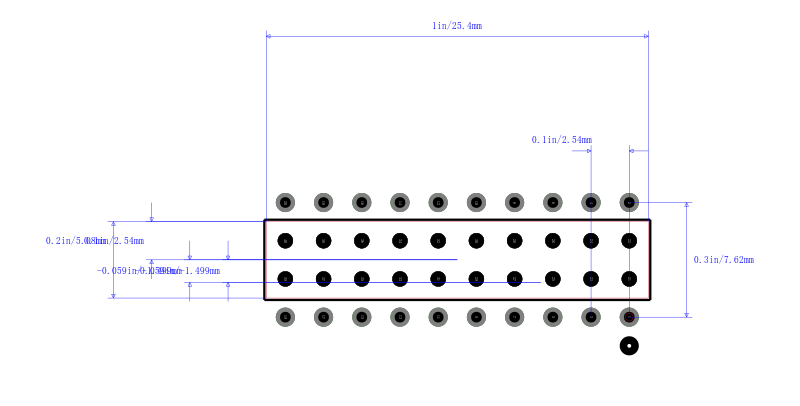

- Pitch spacing is 2.54mm 1 to 50 contacts per row
- .
- Featured with pass through entry -PE option
- .
- Black liquid crystal polymer insulator material
- .
- Contact material is phosphor bronze
- .
- 10µ" gold plated contacts
- .
- Tiger Claw contact system
- .
- Contact resistance is 10mohm
- .
- Complies with UL E111594 and CSA 090871_0_000 standards
- .
- High operating temperature range of -55°C to 125°C
