BAS416
数据手册.pdf
NXP
恩智浦
分立器件

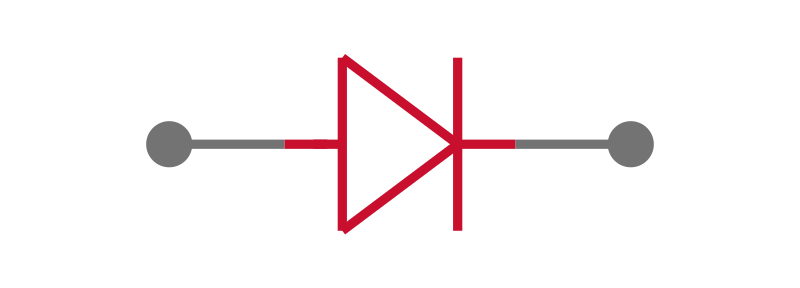

NXP BAS416 二极管 小信号, 单, 85 V, 200 mA, 1.25 V, 3 µs, 4 A

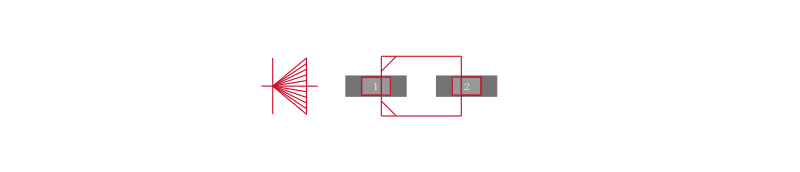

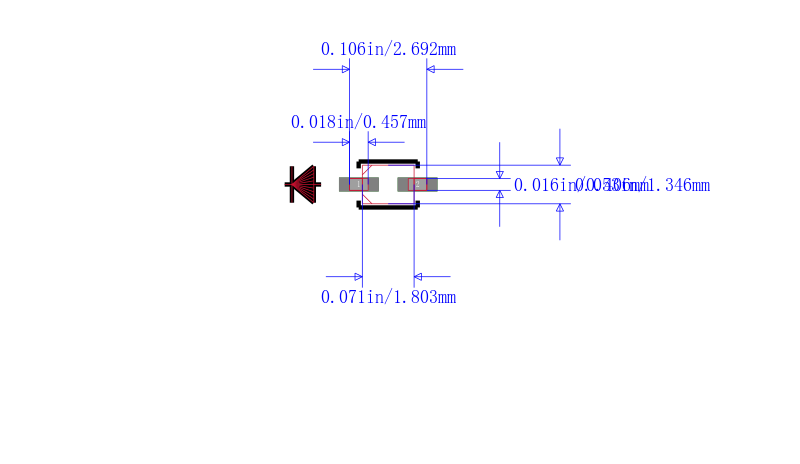

The from is surface mount low leakage diode in SOD-323 package. This is an Epitaxial, medium-speed switching diode with a low leakage current and encapsulated in a small SOD323 SMD plastic package.
- .
- Automotive grade AEC-Q101 qualified
- .
- Maximum repetitive reverse voltage of 85V
- .
- Power dissipation is 250mW
- .
- Operating junction temperature of 150°C
- .
- Non repetitive peak forward surge current is 4A
- .
- Reverse recovery time of 3µs
- .
- Forward voltage of 1.25V at IF 150mA
