AD8209A-EVALZ

评估板, AD8209A 高电压精密差分放大器

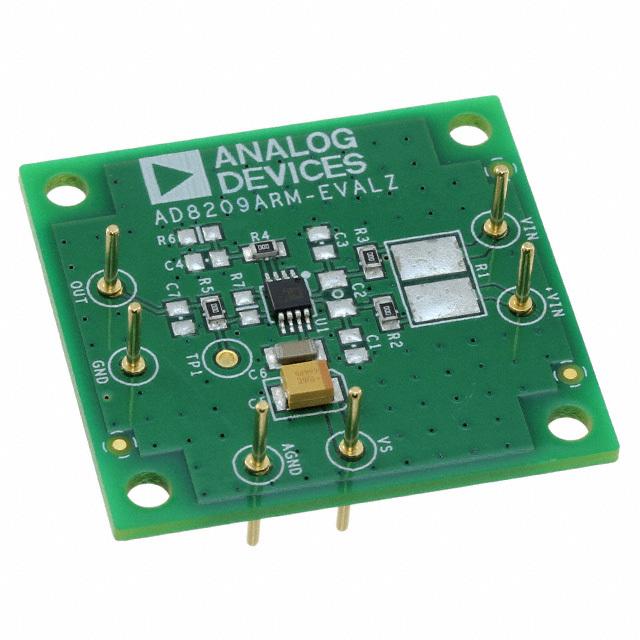

The from Analog Devices is an AD8209A evaluation board. The design of this board emphasizes simplicity and ease of use, the board can be readily mounted with a current sense resistor of a maximum standard size of 2818. The board design also allows flexibility with loads. This board comes with vector pins for the input and output terminals in a predefined configuration.

.

Full featured evaluation board for the AD8209A

.

Enables quick bread boarding/prototyping

.

Includes provision for current sense resistor

.

All analogue design, no software needed

.

Footprints provided for alternate configurations
