AD8599

30 V ，低噪声，轨到轨 30 V, Low Noise, Rail-to-Rail

Product Details

The AD8597/ are very low noise, low distortion opera-tional amplifiers ideal for use as preamplifiers. The low noise of 1.1 nV/√Hz and low harmonic distortion of −120 dB or better at audio bandwidths give the AD8597/AD8599 the wide dynamic range necessary for preamplifiers in audio, medical, and instru-mentation applications. The excellent slew rate of 14 V/μs and 10 MHz gain bandwidth make them highly suitable for medical applications. The low distortion and fast settling time make them ideal for buffering of high resolution data converters.

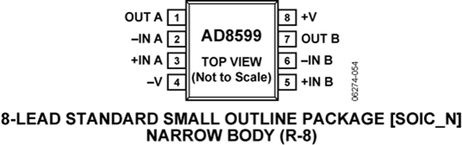

The AD8597 is available in 8-lead SOIC and LFCSP packages, while the AD8599 is available in an 8-lead SOIC package. They are both specified over a −40°C to +125°C temperature range. The AD8597 and AD8599 are members of a growing series of low noise op amps offered by Analog Devices, Inc.

**Applications**

.

Professional audio preamplifiers

.

ATE/precision testers

.

Imaging systems

.

Medical/physiological measurements

.

Precision detectors/instruments

.

Precision data conversion

### Features and Benefits

.

Low noise: 1.1 nV/√Hz at 1 kHz

.

Low distortion: −120 dB THD at 1 kHz

.

Input noise, 0.1 Hz to 10 Hz: <76 nV p-p

.

Slew rate: 14 V/μs

.

Wide bandwidth: 10 MHz

.

Supply current: 4.8 mA/amp typical

.

Low offset voltage: 10 μV typical

.

See data sheet for additional features

AD8599-EP supports defense and aerospace applications AQEC standard

.

Download AD8599-EP data sheet pdf

.

Extended temperature range: −55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site Enhanced product change notification

.

Qualification data available on request

.

V62/16604 DSCC Drawing Number
