AD8052

低成本，高速，轨到轨放大器 Low Cost, High Speed, Rail-to-Rail Amplifiers

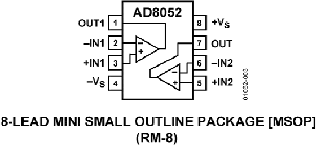

GENERAL DESCRIPTION

The AD8051 single, dual, and AD8054 quad are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V, or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.

Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery.

The AD8051/AD8052/AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.

FEATURES

  High speed and fast settling on 5 V

     110 MHz, −3 dB bandwidth G = +1 AD8051/AD8052

     150 MHz, −3 dB bandwidth G = +1 AD8054

     145 V/μs slew rate

     50 ns settling time to 0.1%

  Single-supply operation

     Output swings to within 25 mV of either rail

     Input voltage range: −0.2 V to +4 V; VS = 5 V

  Video specifications G = +2

     0.1 dB gain flatness: 20 MHz; RL = 150 Ω

     Differential gain/phase: 0.03%/0.03°

  Low distortion

     −80 dBc total harmonic @ 1 MHz, RL = 100 Ω

  Outstanding load drive capability

     Drives 45 mA, 0.5 V from supply rails AD8051/AD8052

     Drives 50 pF capacitive load G = +1 AD8051/AD8052

  Low power: 2.75 mA/amplifier AD8054

  Low power: 4.4 mA/amplifier AD8051/AD8052

APPLICATIONS

  Active filters

  Analog-to-digital drivers

  Clock buffer

  Consumer video

  Professional cameras

  CCD imaging systems

  CD/DVD ROMs
