AT-130V
数据手册.pdf
Hirose Electric
广濑
电子元器件分类
射频/同轴适配器, 固定衰减器, 30 dB, SMA, 插头, SMA, 插座, 直型转接器, 50 ohm

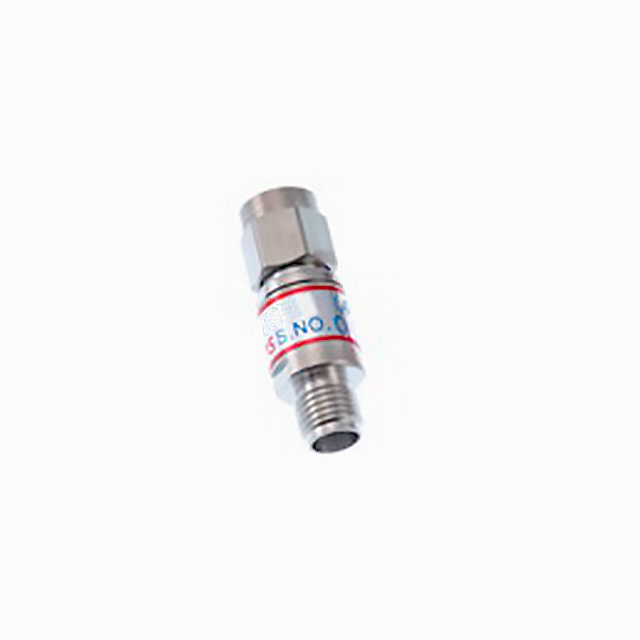

The from Hirose is a SMA Plug to SMA Jack Fixed Attenuator rated 30 dB. Durable stainless steel body with a passivated finish, PTFE insulator, and gold-plated beryllium copper male and female contacts. The design of the attenuation element uses a distributed constant circuit and metal film resistor for high reliability. This attenuator achieves a high degree of matching and shows stable characteristics for environments of varying temperature, humidity, and gases.
- .
- Frequency range DC to 8 GHz
- .
- Attenuation 30 dB ±1.2 DC to 8 GHz
- .
- VSWR max. 1.15 DC to 4 GHz; 1.2 4 to 8 GHz
- .
- Impedance 50 ohms
- .
- Input power 1W max.
- .
- Operating temperature range of -10°C to +65°C
- .
- Operating relative humidity 95% max.
