AD5544ARSZ-REEL7
数据手册.pdf四，电流输出，串行输入16位/ 14位DAC Quad, Current-Output, Serial-Input 16-/14-Bit DACs
Product Details
The AD5544/AD5554 quad, 16-/14-bit, current output, digital-to-analog converters DACs are designed to operate from 2.7 V to 5.5 V supply range.
The applied external reference input voltage VREFX determines the full-scale output current. Integrated feedback resistors RFB provide temperature-tracking, full-scale voltage outputs when combined with an external I-to-V precision amplifier.
A double-buffered serial data interface offers high speed, 3-wire, SPI- and microcontroller-compatible inputs using serial data in SDI, a chip select CS, and clock CLK signals. In addition, a serial data out pin SDO allows for daisy-chaining when multiple packages are used. A common, level-sensitive, load DAC strobe LDAC input allows the simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to 0 at system turn-on. An MSB pin allows system reset assertion RS to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.

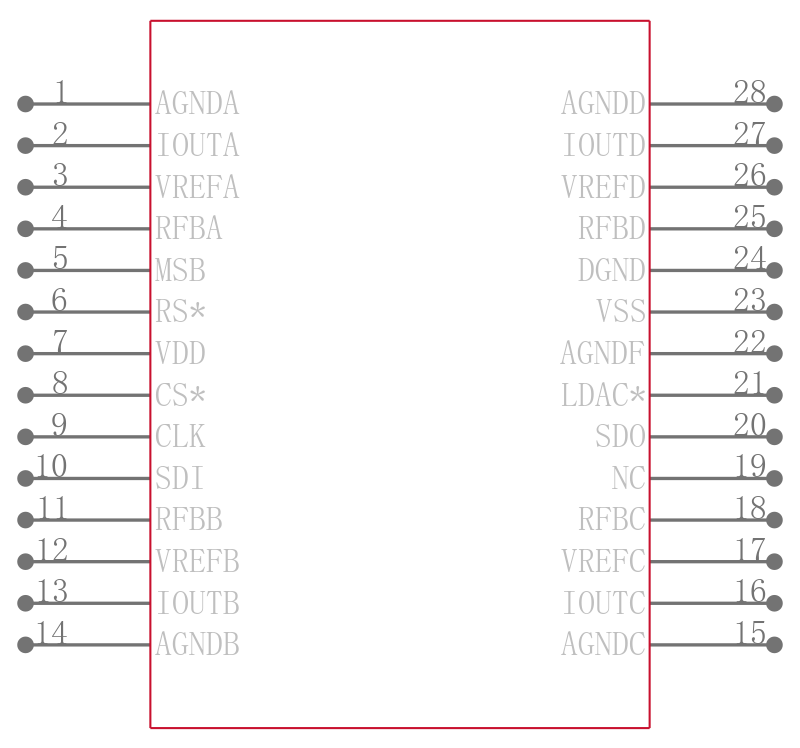

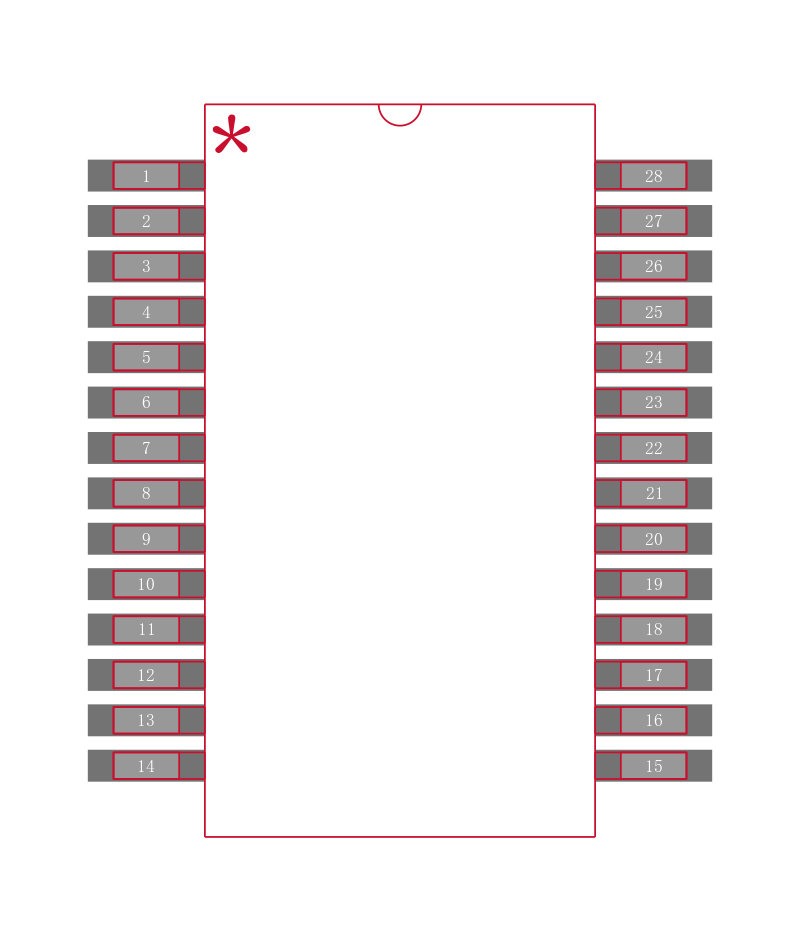

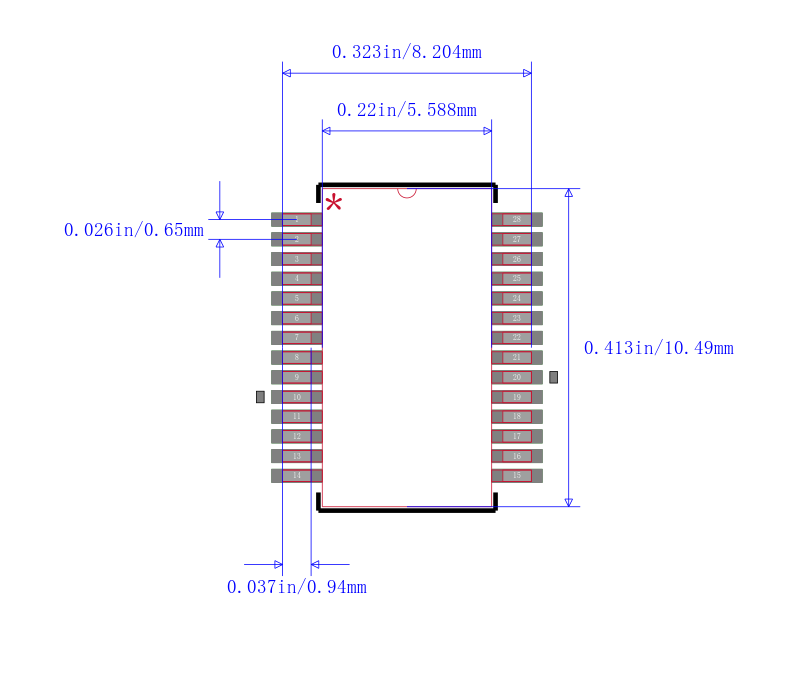

The AD5544 is packaged in the compact 28-lead SSOP and 32-lead LFCSP. The AD5554 is packaged in the compact 28-lead SSOP.
**Applications**
- .
- Automatic test equipment
- .
- Instrumentation
- .
- Digitally controlled calibration
### Features and Benefits
- .
- 16-bit resolution INL of ±1 LSB B Grade
- .
- 2 mA full-scale current ± 20%, with VREF = ±10 V
- .
- 0.9 μs settling time to ±0.1%
- .
- 12 MHz multiplying bandwidth
- .
- Midscale glitch of −1 nV-sec
- .
- Midscale or zero-scale reset
- .
- Four separate, 4-quadrant multiplying reference inputs
- .
- Compact 28-lead SSOP and 32-lead LFCSP
- .
- See data sheet for additional features
AD5544-EP supports defense and aerospace applications AQEC standard
- .
- Download AD5544-EP Data Sheet pdf
- .
- Military temperature range −55°C to +125°C
- .
- Controlled manufacturing baseline
- .
- One assembly/test site
- .
- One fabrication site
- .
- Enhanced product change notification
- .
- Qualification data available on request
- .
- V62/12663 DSCC Drawing Number
