AD7705BRZ-REEL7
数据手册.pdf模数转换器 - ADC LOW COST 2CHNL 16-6 SIGMA DELTA ADC I.C.
Product Details
The AD7705 and AD7706 are complete 16-bit, low-cost, Sigma Delta ADCs intended for dc and low-frequency ac measurement applications. Their low power 1 mW max @ 3 V allows them to be used in loop-powered, battery-powered or locally-powered applications. The on-chip Programmable Gain Amplifier with gain settings from I through 128 can accommodate both low-level and high-level analog inputs with no external signal conditioning hardware.
The AD7705 has two differential channels while the AD7706 has one differential and two pseudo-differential channels. Differential reference inputs also allow maximum flexibility in tailoring the device for use in ratiometric applications.
### Features and Benefits
- .
- Two Fully Differential Input Channel ADCs
- .
- Programmable Gain Front End
Gains from 1 to 128
- .
- Three-Wire Serial Interface
SPI®, QSPI™, MICROWIRE™ and DSP Compatible
Schmitt Trigger Input on SCLK
- .
- Ability to Buffer the Analog Input
- .
- 2.7 V to 3.3 V or 4.75 V to 5.25 V Operation
- .
- Power Dissipation 1 mW max @ 3 V
- .
- Standby Current 8 µA max
- .

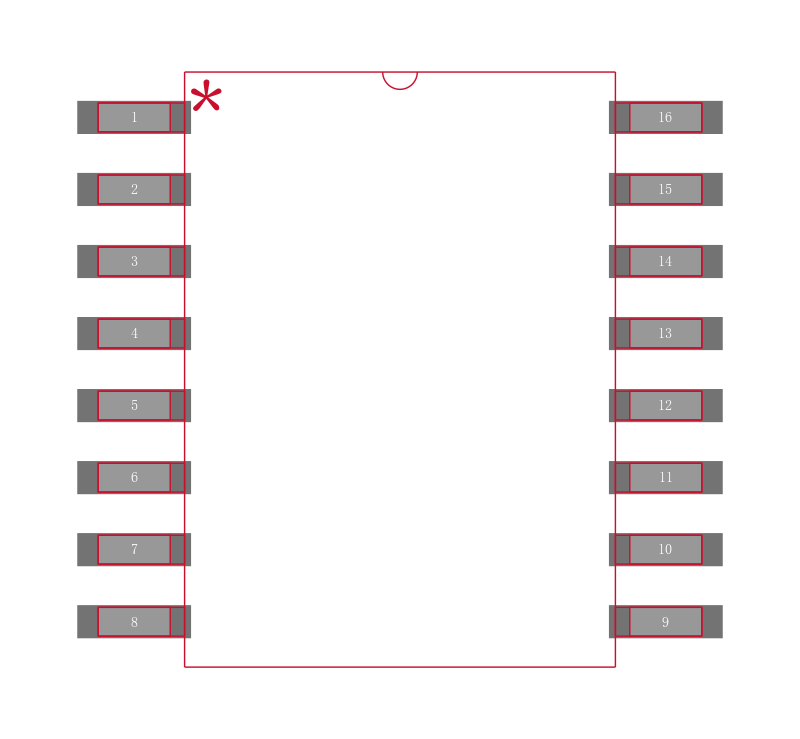

- 16-Lead DIP, 16-Lead SOIC and TSSOP Packages
