ADG919BRM

宽带， 43分贝隔离1GHz的CMOS 1.65 V至2.75V ， 2 ： 1多路复用器/ SPDT开关 Wideband, 43dB Isolation 1GHz, CMOS 1.65 V to 2.75V, 2:1 Mux/SPDT Switches

GENERAL DESCRIPTION

The ADG918/ADG919 are wideband switches using a CMOS process to provide high isolation and low insertion loss to 1GHz. The ADG918 is an absorptive switch having 50 ohm terminated shunt legs, while the ADG919 is a reflective switch. These devices are designed such that the isolation is high over the DC to 1GHz frequency range. They have on board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless applications and general purpose high frequency switching.

FEATURES

  Wideband DC to 2GHz

  ADG918/ADG919 Absorptive/Reflective Switches

  High Off Isolation 43 dB @ 1 GHz

  Low Insertion Loss 1 dB DC to 900 MHz

  Single 1.65 to 2.75 V power supply

  CMOS/LVTTL Control Logic

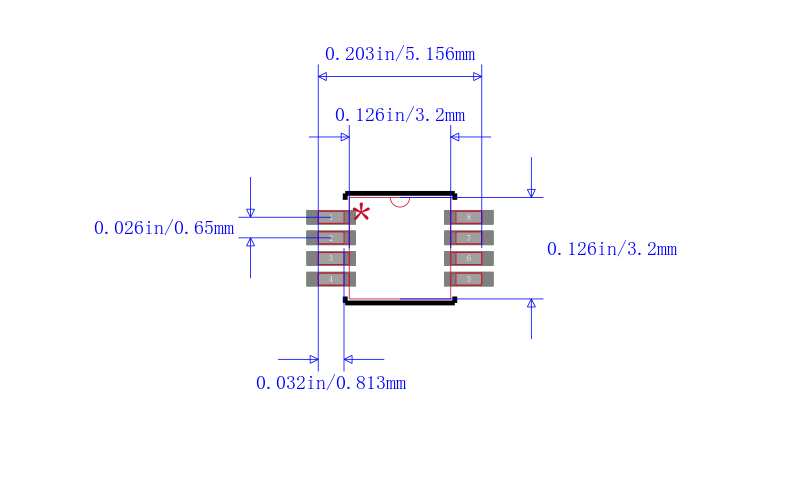

  8 Lead MSOP & Tiny 3 x 3mm CSP Packages

  Low Power Consumption 5µA

APPLICATIONS

  Wireless Communications

  General Purpose RF switching

  Dual Band Applications

  Filter Selection

  Antenna Switch

  Digital Transceiver Front-End Switch

  IF Switching
