UCY2C471MHD

470uF ±20% 160V Φ18mm 35.5mm

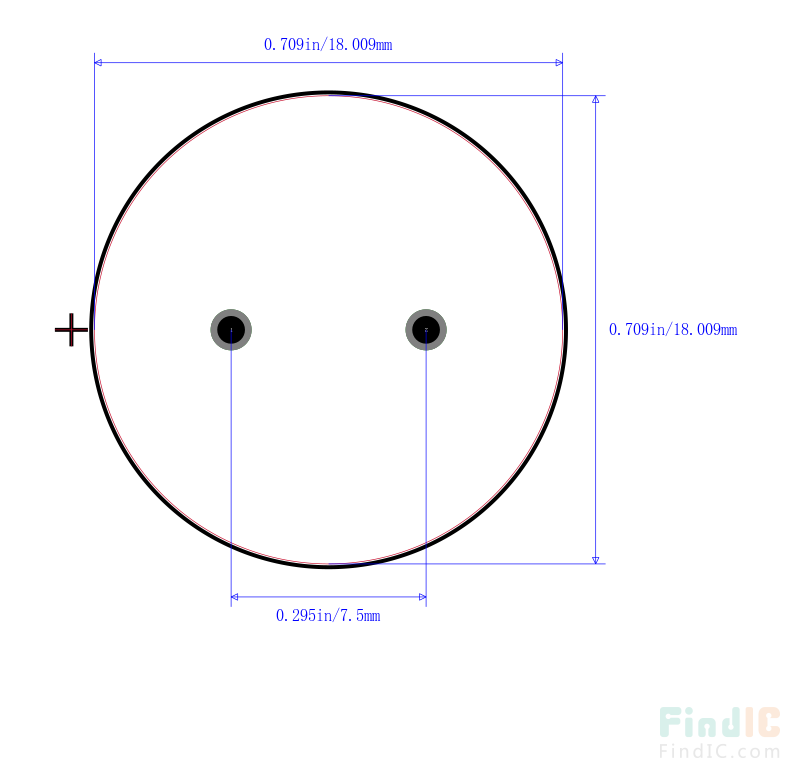

Manufactured from , this electrolytic aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 470uF. It has a tolerance of 20%. This product is 35.5 mm tall with a diameter of 18 mm. The UCY2C471MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.
