293D476X9016C2TE3
数据手册.pdf10%精度,16V,47uF,表面贴装钽电容,C型
钽器
欧时:

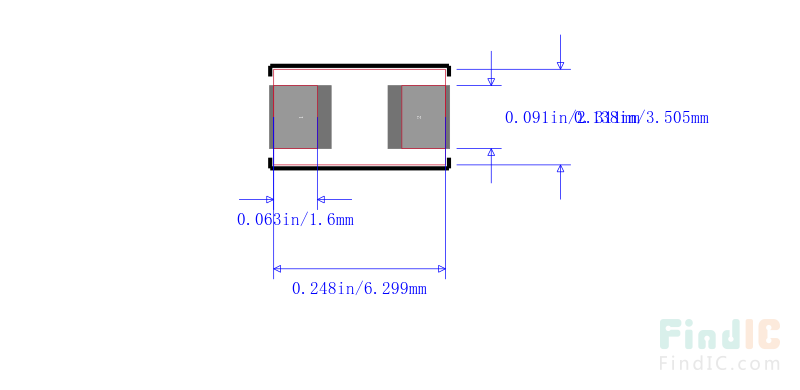

293D 系列Vishay 293D 系列工业等级 TANTAMOUNT® 电容器为固体钽质，表面安装，且具有 100% 表面无光泽镀锡终端。 293D 系列提供稳定的电气参数、高可靠性和长工作寿命；它们适用于需要容积效率的应用。 符合 IEC 规格 QC300801/US0001 和 EIA 535BAAC 极性带表示阳极（+ve 接线端子）尺寸 mm --- 外壳代码 | L | W | H | P ±0.3 | Tw ±0.1 | TH min. A 1206 | 3.2 ±0.2 | 1.6 ±0.2 | 1.6 ±0.2 | 0.8 | 1.2 | 0.7 B | 3.5 ±0.2 | 2.8 ±0.2 | 1.9 ±0.2 | 0.8 | 2.2 | 0.7 C | 6.0 ±0.3 | 3.2 ±0.3 | 2.5 ±0.3 | 1.3 | 2.2 | 1.0 D | 7.3 ±0.3 | 4.3 ±0.3 | 2.8 ±0.3 | 1.3 | 2.4 | 1.0 E | 7.3 ±0.3 | 4.3 ±0.3 | 4.0 ±0.3 | 1.3 | 2.4 | 1.0
立创商城:
47uF ±10% 16V
e络盟:
表面贴装钽电容, TANTAMOUNT®, 47 µF, 16 V, 2412 [6032-28 公制], 293D Series, ± 10%, -55 °C
艾睿:
Do you need a capacitor for a sample and hold circuit? Then use this 293D476X9016C2TE3 solid tantalum capacitor from Vishay for its low leakage current! It can withstand a voltage of 16 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 7.5 μA. Its capacitance value is 47uF. This product is 6 mm long, 2.5 mm tall and 3.2 mm deep. It has a tolerance of 10%.
安富利:
Cap Tant Solid 47uF 16V C CASE 10% 6 X 3.2 X 2.5mm SMD 6032-28 T/R
Chip1Stop:
Cap Tant Solid 47uF 16V C CASE 10% 6 X 3.2 X 2.5mm SMD 6032-28 1 Ohm 125 C T/R
TME:
Capacitor: tantalum; 47uF; 16VDC; SMD; Case: C; ±10%; -55÷125°C
Verical:
Cap Tant Solid 47uF 16V C CASE 10% 6 X 3.2 X 2.5mm SMD 6032-28 1 Ohm 125C T/R
Newark:
Surface Mount Tantalum Capacitor, TANTAMOUNT®, 47 µF, 16 V, 293D Series, ± 10%, 2312 [6032 Metric]
儒卓力:
**TC 47uF 16V 10% Case C **
力源芯城:
10%精度,16V,47uF,表面贴装钽电容,C型
Win Source:
47μF Molded Tantalum Capacitors 16V 2312 6032 Metric 1 Ohm 0.236" L x 0.126" W 6.00mm x 3.20mm
