CD74AC161E
TEXAS INSTRUMENTS CD74AC161E 芯片, 74AC CMOS逻辑器件

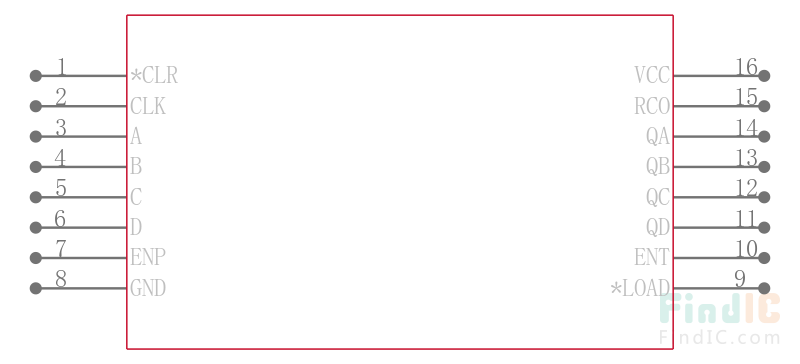

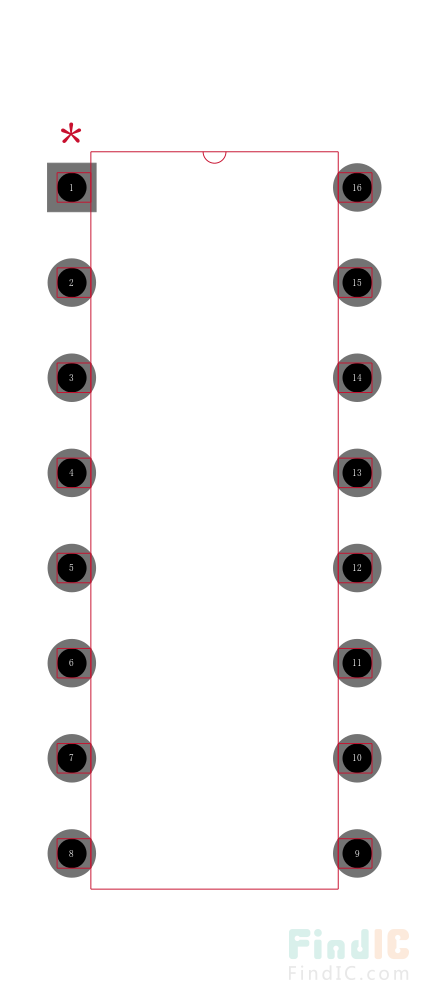

The is a synchronous presettable Binary Counter with asynchronous reset. It features an internal carry look-ahead for application in high-speed counting. It is fully programmable, that is, it can be preset to any number between 0 and 9 or 15. Presetting is synchronous, therefore, setting up a low level at the load input disables the counter and causes the outputs to agree with the setup data after the next clock pulse, regardless of the levels of the enable inputs. The clear function is asynchronous. A low level at the clear CLR\\ input sets all four of the flip-flop outputs low, regardless of the levels of the CLK, LOAD\ or enable inputs. The carry look-ahead circuitry provides for cascading counters for n-bit synchronous applications without additional gating. Instrumental in accomplishing this function are ENP, ENT and a ripple-carry output RCO. Both ENP and ENT must be high to count and ENT is fed forward to enable RCO.
- .
- Internal look-ahead for fast counting
- .
- Carry output for n-bit cascading
- .
- Synchronous counting
- .
- Synchronously programmable
- .
- SCR-latchup-resistant CMOS process and circuit design
