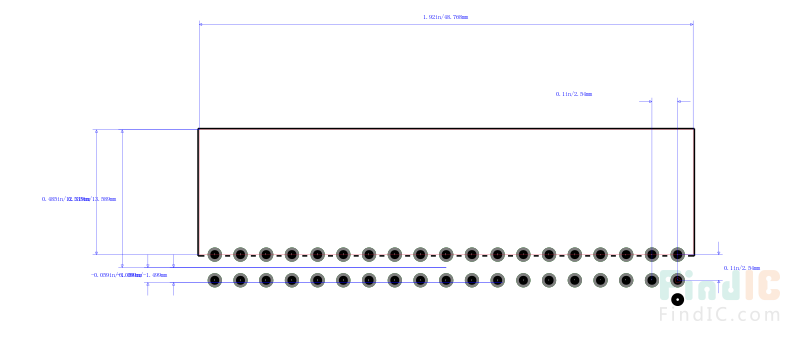

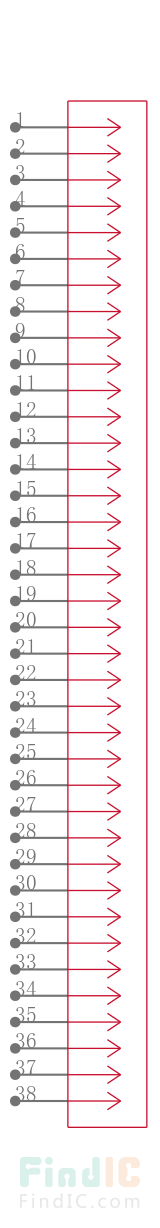

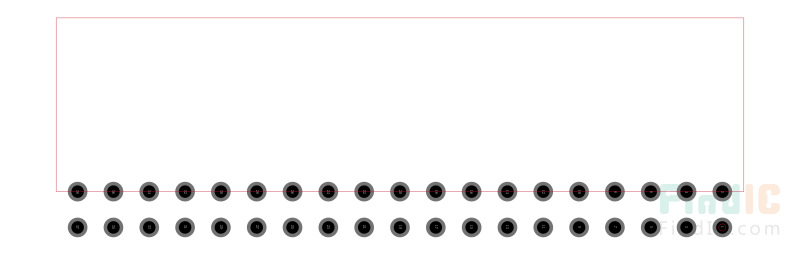

TSW-119-08-G-D-RA

SAMTEC TSW-119-08-G-D-RA Board-To-Board Connector, 2.54mm, 38Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔，直角 38 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 38POS 2.54MM

艾睿:
Think of Samtec&s;s unshrouded TSW-119-08-G-D-RA header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 38 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-119-08-G-D-RA is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 48.26 mm long, 5.56 mm tall and 12.44 mm deep.

Newark:
# SAMTEC  TSW-119-08-G-D-RA  Board-To-Board Connector, 2.54 mm, 38 Contacts, Header, TSW Series, Through Hole, 2 Rows
